ABM3H-S6-T

Active

Panduit Corp

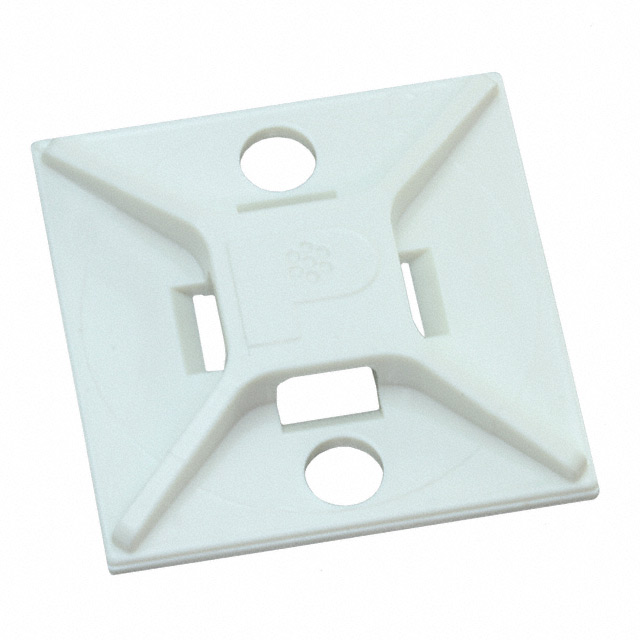

CABLE TIE MOUNT, #6 SCREW (M3), 1.5"X1.5 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

CABLE TIE MOUNT, #6 SCREW (M3), 1.5"X1.5 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABM3H-S6-T	ABM3H Series

Color	White	Black, White
For Use With/Related Products	I, LH, M, H Ties, S	I, LH, M, H Ties, S
Material	Nylon	Nylon, Heat Stabilized for Temperatures up to 180°F, Weather Resistant, Nylon, Weather Resistant, Nylon, Nylon, Heat Stabilized
Mounting Type	Screw, #6 (M3)	Adhesive, #6 (M3), Screw, Screw, #6 (M3)
Size / Dimension [x]	1.5 in	1.5 in
Size / Dimension [x]	38.1 mm	38.1 mm
Size / Dimension [y]	38.1 mm	38.1 mm
Size / Dimension [y]	1.5 in	1.5 in
Size / Dimension [z]	0.2 "	0.2 - 0.25 "
Size / Dimension [z]	5.2 mm	5.2 - 6.4 mm
Type	Quad Opening - Paired Strip	Quad Opening - Paired Strip

CABLE TIE MOUNT, HI TEMP. ADH., 1.5"X1.5

Part	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Color	Mounting Type	Type	Material
Panduit Corp ABM3H-AT-L0	H Ties, I, LH, M, S	0.25 "	1.5 in	38.1 mm	1.5 in	6.4 mm	38.1 mm	Black	#6 (M3), Adhesive, Screw	Quad Opening - Paired Strip	Nylon, Heat Stabilized for Temperatures up to 180°F, Weather Resistant
Panduit Corp ABM3H-S6-T0	H Ties, I, LH, M, S	0.2 "	1.5 in	38.1 mm	1.5 in	5.2 mm	38.1 mm	Black	Screw, #6 (M3)	Quad Opening - Paired Strip	Nylon, Weather Resistant
Panduit Corp ABM3H-S6-T	H Ties, I, LH, M, S	0.2 "	1.5 in	38.1 mm	1.5 in	5.2 mm	38.1 mm	White	Screw, #6 (M3)	Quad Opening - Paired Strip	Nylon
Panduit Corp ABM3H-AT-T	H Ties, I, LH, M, S	0.25 "	1.5 in	38.1 mm	1.5 in	6.4 mm	38.1 mm	White	#6 (M3), Adhesive, Screw	Quad Opening - Paired Strip	Nylon, Heat Stabilized
