4302F5-5V
ActiveVisual Communications Company - VCC

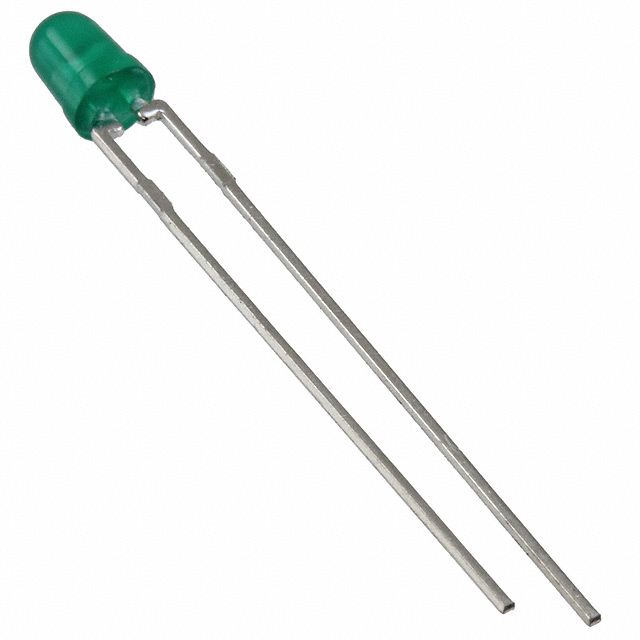

LED GREEN DIFFUSED T-1 T/H
4302F5-5V
ActiveVisual Communications Company - VCC
LED GREEN DIFFUSED T-1 T/H
Description
General part information
4302F5-5V
Green LED Indication - Discrete 5V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 4302F5-5V |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) | 0.25 in |
| Lens Color | Green |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 8 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Dimension | 3 mm |
| Package Name | T-1 (3mm), T-1 |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 5 V |
| Wavelength - Peak | 565 nm |
