1362991-1

Active

TE Connectivity AMP Connectors

CONN MCX PLUG R/A 75 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX PLUG R/A 75 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1362991-1

Body Finish	Nickel
Cable Group	RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	75 Ohms

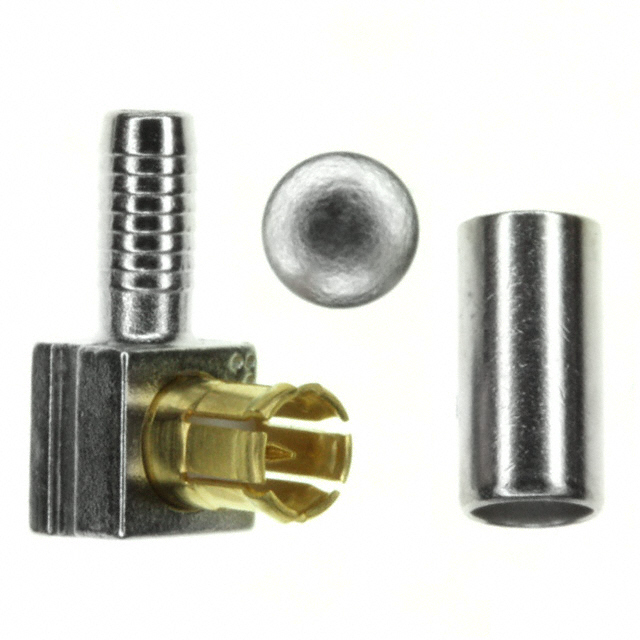

Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

CONN MCX PLUG R/A 75 OHM SOLDER

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Body Finish	Shield Termination	Mating Cycles	Connector Style	Center Contact Material	Cable Group	Contact Termination	Impedance	Mounting Type	Insertion Loss	Voltage Rating	Connector Type	Includes	Center Contact Plating	Fastening Type
TE Connectivity AMP Connectors 1362991-1	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	6000 MHz	Nickel	Crimp	500	MCX	Beryllium Copper	RG-179	Solder	75 Ohms	Free Hanging (In-Line), Right Angle	0.1 dB	335 V	Male Pin, Plug	1 Connector, 1 End Cap, 1 Ferrule	Gold	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	18	$ 4.04

General part information

MCX Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Solder
