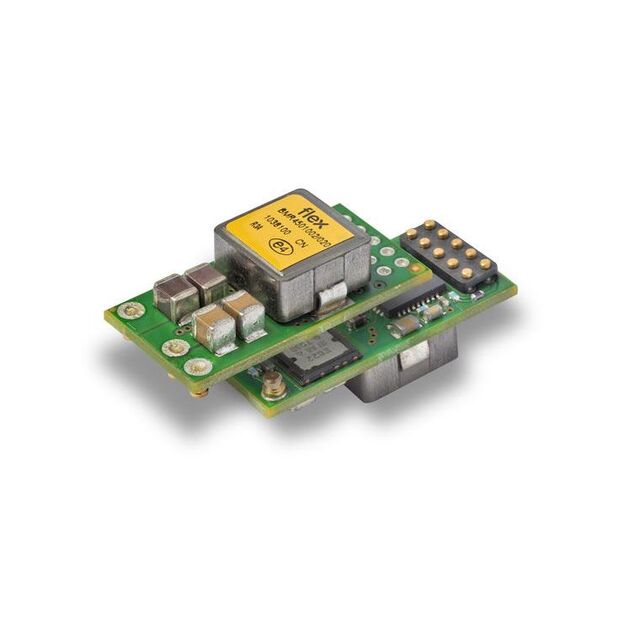

BMR4500002/020

Active

Flex Power Modules

DIP,25.7X12.9MM DC-DC POWER MODULES ROHS

Search across all available documentation for this part.

Active

Flex Power Modules

DIP,25.7X12.9MM DC-DC POWER MODULES ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4500002/020	BMR450 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	20 A	20 A
Efficiency	94.7 %	94.7 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	13-DIP Module	13-SMD Module, 13-DIP Module
Power (Watts)	110 W	110 W
Size / Dimension [x]	1.01 in	1.01 in
Size / Dimension [x]	25.7 mm	25.7 mm
Size / Dimension [y]	12.9 mm	12.9 mm
Size / Dimension [y]	0.51 in	0.51 in
Size / Dimension [z]	0.32 "	0.32 "
Size / Dimension [z]	8.2 mm	8.2 mm
Standard Number	62368-1	62368-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1 [Max]	5.5 V	5.5 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

DC DC CONVERTER 0.6-5.5V 110W

Part	Approval Agency	Control Features	Power (Watts)	Applications	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Mounting Type	Package / Case	Efficiency	Type	Current - Output (Max) [Max]	Standard Number	Number of Outputs	Features
Flex Power Modules BMR4501002/020	CB, CSA, IEC, TUV, UL	Active Low, Enable	110 W	ITE (Commercial)	5.5 V	0.6 V	14 V	-40 °C	120 °C	0.32 "	8.2 mm	12.9 mm	1.01 in	0.51 in	25.7 mm	4.5 V	Surface Mount	13-SMD Module	94.7 %	Non-Isolated PoL Module, Digital	20 A	62368-1	1	Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Flex Power Modules BMR4500002/020	CB, CSA, IEC, TUV, UL	Active Low, Enable	110 W	ITE (Commercial)	5.5 V	0.6 V	14 V	-40 °C	120 °C	0.32 "	8.2 mm	12.9 mm	1.01 in	0.51 in	25.7 mm	4.5 V	Through Hole	13-DIP Module	94.7 %	Non-Isolated PoL Module, Digital	20 A	62368-1	1	Adjustable Output, PMBus™, Remote On/Off, Remote Sense

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 5.5V 20A 4.5V - 14V Input
