5151093F

Active

DIALIGHT

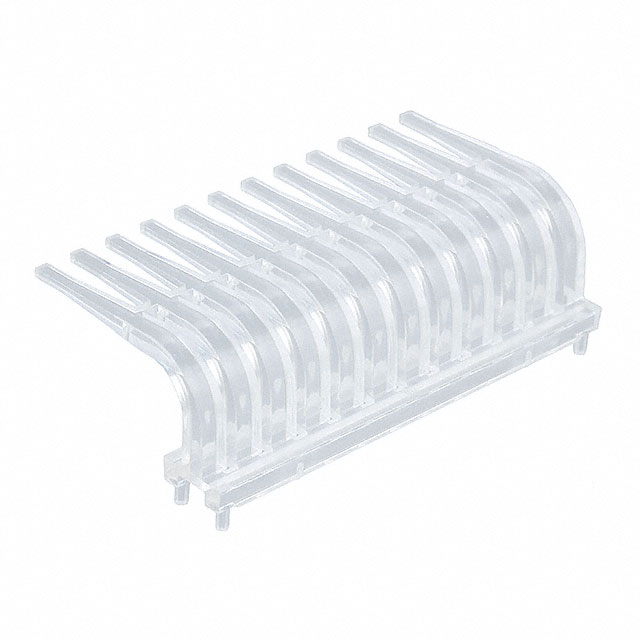

LIGHT PIPE 12 ELEMENT RJ45

Search across all available documentation for this part.

Active

DIALIGHT

LIGHT PIPE 12 ELEMENT RJ45

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5151093F	5151093 Series

Color	Clear	Clear, Diffused
Configuration	12 Wide	12 Wide
Lens Size [x]	2.03 mm	2.03 mm
Lens Size [y]	1.27 mm	1.27 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Mounting Type	Board Mount, Right Angle, Press Fit	Board Mount, Right Angle, Press Fit
Type	Rigid	Rigid

LIGHT PIPE 12 ELEMENT RJ45

Part	Lens Style	Color	Mounting Type	Lens Size [y]	Lens Size [x]	Configuration	Type
DIALIGHT 5151093F	Rectangle with Flat Top	Clear	Board Mount, Press Fit, Right Angle	1.27 mm	2.03 mm	12 Wide	Rigid
DIALIGHT 5151093801F	Rectangle with Flat Top	Clear, Diffused	Board Mount, Press Fit, Right Angle	1.27 mm	2.03 mm	12 Wide	Rigid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Light Pipe 12 Wide Clear Rigid Board Mount, Press Fit, Right Angle
