158220-0120

Active

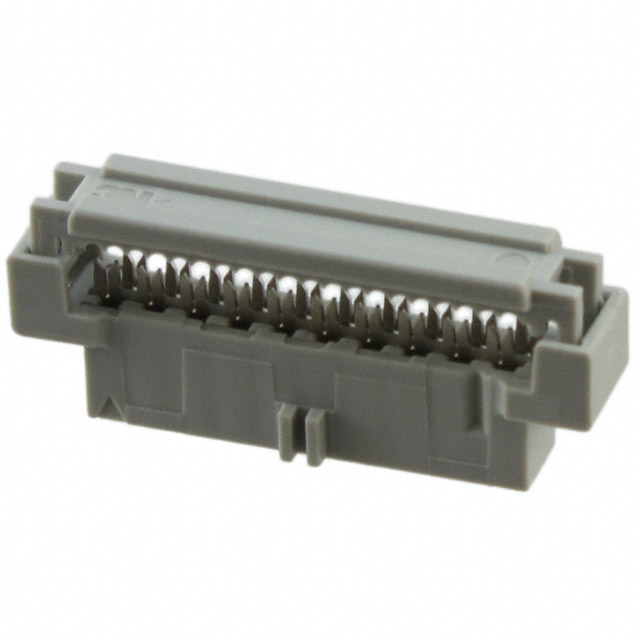

CONN SOCKET 20POS IDC 28AWG GOLD

Search across all available documentation for this part.

Active

CONN SOCKET 20POS IDC 28AWG GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 20POS IDC 28AWG GOLD

Part	Connector Type	Cable Termination	Contact Type	Mounting Type	Number of Positions	Wire Type	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Number of Rows	Wire Gauge	Features	Pitch [x]	Pitch [x]	Shielding	Length	Length	Length	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable [custom]	Length
3M 158220-012015	Socket	IDC	Female Socket	Free Hanging (In-Line)	20	Ribbon Cable	Gray	Gold	15 µin	0.38 µm	2 mm	0.079 in	2	28 AWG	Feed Through	0.079 in	2 mm
3M 158220-0120-3625/20-D-3	Socket to Socket	IDC			20			Gold	30 Áin	0.76 Ám			2					Unshielded	3 "	76.2 mm	0.25 ft	2 mm	0.079 in	1 mm	0.039 "
3M 158220-0120	Socket	IDC	Female Socket	Free Hanging (In-Line)	20	Ribbon Cable	Gray	Gold	30 Áin	0.76 Ám	2 mm	0.079 in	2	28 AWG	Feed Through	0.079 in	2 mm
3M 158220-0120-HF625/20-D-6	Socket to Socket	IDC			20			Gold	30 Áin	0.76 Ám			2					Unshielded	6 "	152.4 mm		2 mm	0.079 in	1 mm	0.039 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Rectangular Socket Connector IDC Gold 28 AWG
