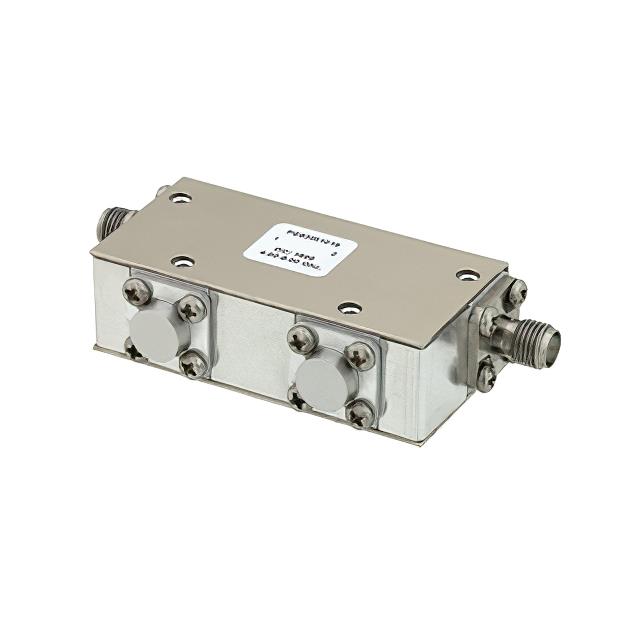

PE83IR1019
ActivePasternack
DUAL JUNCTION ISOLATOR WITH 36 D
PE83IR1019
ActivePasternack
DUAL JUNCTION ISOLATOR WITH 36 D
Description
General part information
PE83IR1019
DUAL JUNCTION ISOLATOR WITH 36 D
Technical Specifications
Parameters and characteristics for this part
| Specification | PE83IR1019 |
|---|---|
| Connector Type | SMA-FEMALE |
| Frequency (Max) | 8 GHz |
| Frequency (Min) | 4 GHz |
| Insertion Loss | 1 dB |
| Isolation (Min) | 36 dB |
| Package / Case | Module, SMA Connectors |
| Power - Average Forward | 10 W |
| Type | Isolator |
| VSWR | 1.3 |
