BAV23-7

Active

Diodes Inc

DIODE SMALL SIGNAL SWITCHING 250V 0.4A 4-PIN SOT-143 T/R

Search across all available documentation for this part.

Active

Diodes Inc

DIODE SMALL SIGNAL SWITCHING 250V 0.4A 4-PIN SOT-143 T/R

Technical Specifications

Parameters and characteristics for this part

Specification	BAV23-7

Current - Average Rectified (Io) (per Diode)	400 mA
Current - Reverse Leakage @ Vr	100 nA
Diode Configuration	2 Independent
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C

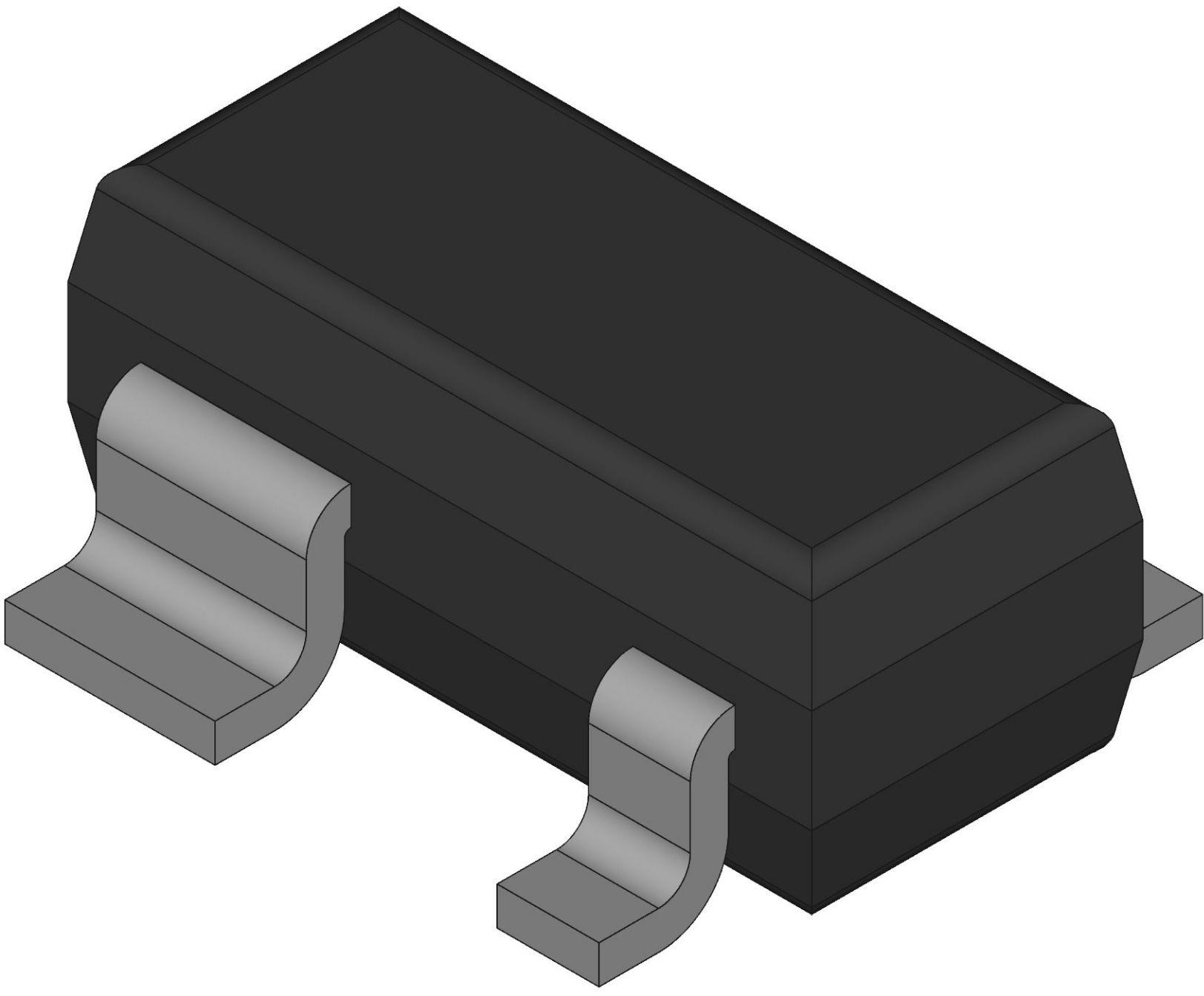

Package / Case	TO-253-4, TO-253AA
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOT-143
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

switching diode

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration	Package / Case	Mounting Type	Technology	Speed	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Average Rectified (Io) (per Diode)
Diodes Inc BAV23C-7-F	200 V	150 °C	-65 C	1 Pair Common Cathode	SC-59 SOT-23-3 TO-236-3	Surface Mount	Standard	200 mA 500 ns	100 nA	50 ns	1.25 V	SOT-23-3	400 mA
Diodes Inc BAV23C-7	200 V	150 °C	-65 C	1 Pair Common Cathode	SC-59 SOT-23-3 TO-236-3	Surface Mount	Standard	200 mA 500 ns	100 nA	50 ns	1.25 V	SOT-23-3	400 mA
Diodes Inc BAV23S-7-F	200 V	150 °C	-65 C	1 Pair Series Connection	SC-59 SOT-23-3 TO-236-3	Surface Mount	Standard	200 mA 500 ns	100 nA	50 ns	1.25 V	SOT-23-3	400 mA
Diodes Inc BAV23A-7-G
Diodes Inc BAV23-7	200 V	150 °C	-65 C	2 Independent	TO-253-4 TO-253AA	Surface Mount	Standard	200 mA 500 ns	100 nA	50 ns	1.25 V	SOT-143	400 mA
Diodes Inc BAV23S-7	200 V	150 °C	-65 C	1 Pair Series Connection	SC-59 SOT-23-3 TO-236-3	Surface Mount	Standard	200 mA 500 ns	100 nA	50 ns	1.25 V	SOT-23-3	400 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

switching diode
