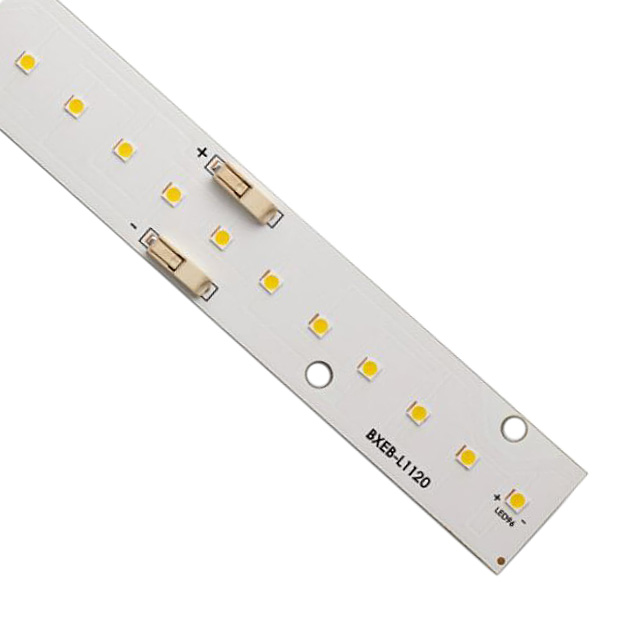

BXEB-L1120Z-50E4000-C-B3

Active

BRIDGELUX

EB GEN 2 LED MODULE, 1120 MM, 5000K, 80 CRI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXEB-L1120Z-50E4000-C-B3

Active

BRIDGELUX

EB GEN 2 LED MODULE, 1120 MM, 5000K, 80 CRI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.40
		50	$ 8.10
		100	$ 7.50

Description

General part information

BXEB-L1120 Series

LED Lighting COBs Engines Modules LED Module EB Series™ Gen 2 White, Cool Linear Light Strip

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXEB-L1120Z-50E4000-C-B3	BXEB-L1120 Series

CCT (K)	-	3000 - 5700 K
Color	Cool, White	Cool, White, Neutral, Warm
Configuration	Linear Light Strip	Linear Light Strip
CRI (Color Rendering Index)	80	80 - 98
Current - Max [Max]	1.4 A	1.4 - 2.8 A
Current - Test	-	960 mA
Features	-	With Connector
Height [z]	6.1 mm	6.1 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	180 lm/W	127 - 194 lm/W
Luminous Flux @ Current/Temperature	4920 lm	4780 - 10440 lm
Size / Dimension [x]	1120 mm	1120 mm
Size / Dimension [y]	24 mm	24 mm
Temperature - Test	-	50 °C
Type	LED Module	LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	39 V	38.4 - 44.2 V

BXEB-L1120 Series

LED MOD EB SER WH LNR STRP 5700K

Part	CCT (K)	Luminous Flux @ Current/Temperature	Lens Type	Temperature - Test	Voltage - Forward (Vf) (Typ)	Height [z]	Color	Current - Max [Max]	Lumens/Watt @ Current - Test	Configuration	Size / Dimension [x]	Size / Dimension [y]	Type	CRI (Color Rendering Index)	Viewing Angle	Features	Current - Test
BRIDGELUX BXEB-L1120Z-57E4000-C-A3	5700 K	4920 lm	Flat	50 °C	44.2 V	6.1 mm	Cool, White	1.4 A	159 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	80
BRIDGELUX BXEB-L1120Z-40E4000-C-B3	4000 K	4920 lm	Flat		39 V	6.1 mm	Neutral, White	1.4 A	180 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	80	120 °	With Connector
BRIDGELUX BXEB-L1120Z-30E8000-C-D3	3000 K	9920 lm	Flat		38.4 V	6.1 mm	Warm, White	2.8 A	185 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	80	120 °
BRIDGELUX BXEB-L1120Z-35E4000-C-A3	3500 K	4820 lm	Flat	50 °C	44.2 V	6.1 mm	Warm, White	1.4 A	156 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	80
BRIDGELUX BXEB-L1120Z-40S4000-C-C3	4000 K	5380 lm	Flat		40.6 V	6.1 mm	Neutral, White	1.92 A	138 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	98	120 °		960 mA
BRIDGELUX BXEB-L1120Z-40E4000-C-A3	4000 K	4920 lm	Flat	50 °C	44.2 V	6.1 mm	Neutral, White	1.4 A	159 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	80
BRIDGELUX BXEB-L1120Z-50S4000-C-C3		5380 lm	Flat		40.6 V	6.1 mm	Cool, White	1.92 A	138 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	98	120 °		960 mA
BRIDGELUX BXEB-L1120Z-30S4000-C-C3	3000 K	4940 lm	Flat		40.6 V	6.1 mm	Warm, White	1.92 A	127 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	98	120 °		960 mA
BRIDGELUX BXEB-L1120Z-50E4000-C-A3		4920 lm	Flat	50 °C	44.2 V	6.1 mm	Cool, White	1.4 A	159 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	80
BRIDGELUX BXEB-L1120Z-30E4000-C-A3	3000 K	4820 lm	Flat	50 °C	44.2 V	6.1 mm	Warm, White	1.4 A	156 lm/W	Linear Light Strip	1120 mm	24 mm	LED Module	80
