Description
General part information
BF2930

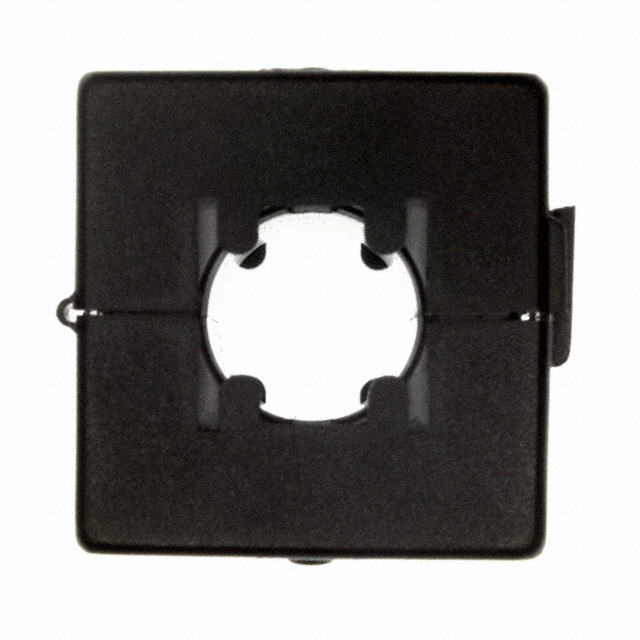

Hinged (Snap On) Free Hanging Ferrite Core 257Ohm @ 100MHz ID 0.512" Dia (13.00mm) OD 1.160" W x 1.200" H (29.60mm x 30.50mm) Length 1.300" (33.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | BF2930 |
|---|---|
| Design | Hinged (Snap On) |
| Impedance | 257 Ohm |
| Inner Dimension (Diameter) | 0.512 in |
| Length | 1.3 in |
| Material | API-1 |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 1.2 in |
| Outer Dimension Width | 1.16 in |
| Type | Round |
