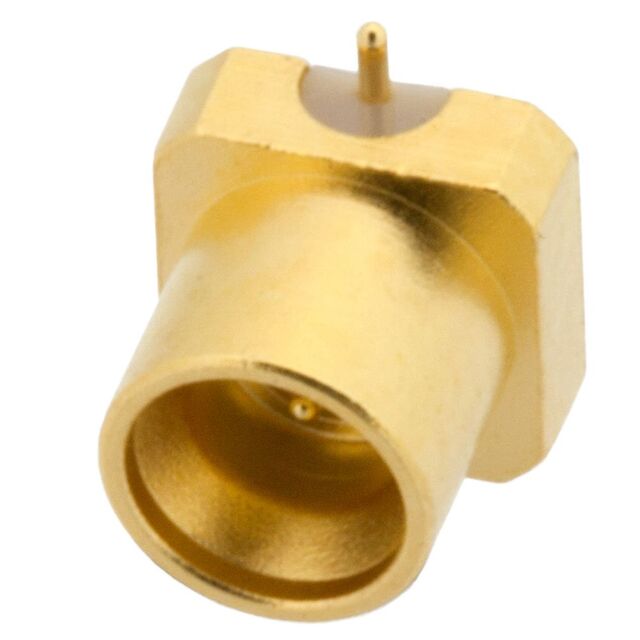

FMCN1381
ActiveFairview Microwave
CONN PLUG SOLDER MINI SMP
FMCN1381
ActiveFairview Microwave
CONN PLUG SOLDER MINI SMP
Description
General part information
FMCN1381
SMP, Mini Connector Plug, Male Pin 50 Ohms Surface Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1381 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | Mini, SMP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max | 65 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mating Cycles | 100 cycles |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 325 V |
