1721029
ActivePhoenix Contact

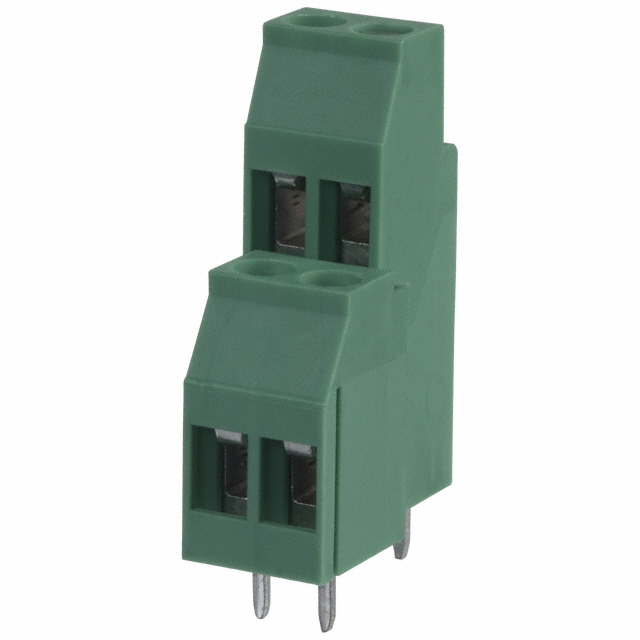

TB, WIRE TO BOARD, 2POS, 30-12AWG, GRN
1721029
ActivePhoenix Contact
TB, WIRE TO BOARD, 2POS, 30-12AWG, GRN
Description
General part information
1721029
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1721029 |
|---|---|
| Color | Green |
| Current | 15 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Pitch | 0.197 in |
| Positions Per Level | 2 |
| Screw Thread | M3 |
| Torque - Screw (Maximum) | 0.6 Nm |
| Torque - Screw (Minimum) | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
