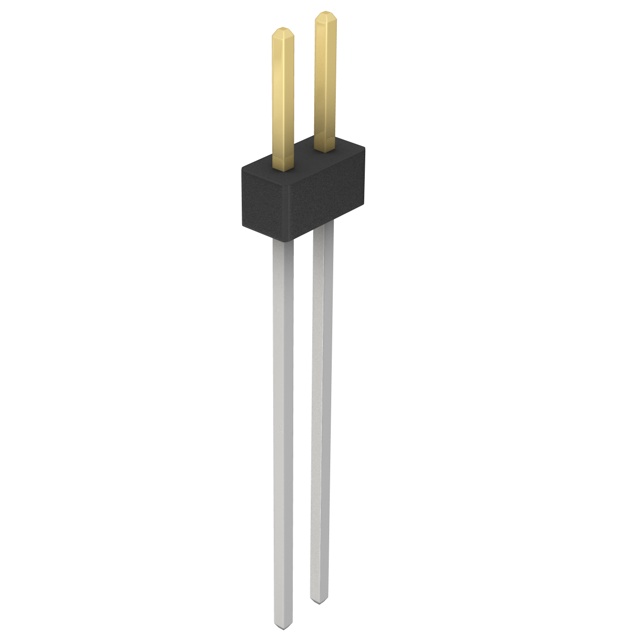

PBC01DAHN
ActiveSullins Connector Solutions
CONN HEADER VERT 2POS
Deep-Dive with AI
Search across all available documentation for this part.
PBC01DAHN
ActiveSullins Connector Solutions
CONN HEADER VERT 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PBC01DAHN |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 20.83 mm |
| Contact Length - Post [x] | 0.82 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Contact Length | 1.15 in |
| Overall Contact Length | 29.21 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PBC01 Series
| Part | Current Rating (Amps) | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material | Termination | Number of Positions Loaded | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Insulation Material | Contact Type | Connector Type | Contact Finish - Post | Shrouding | Number of Positions | Style | Insulation Height | Insulation Height | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Length - Post [x] | Contact Length - Post [x] | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole Right Angle | 2 | 125 °C | -65 ░C | Push-Pull | Gold | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 2 | Board to Board Cable | 0.24 in | 6.1 mm | 0.318 " | 8.08 mm | ||||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole | 2 | 125 °C | -65 ░C | Push-Pull | Gold | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 2 | Board to Board Cable | 0.1 in | 2.54 mm | 0.318 " | 8.08 mm | 0.32 in | 8.13 mm | 0.738 " | 18.75 mm | ||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole Right Angle | 1 | 125 °C | -65 ░C | Push-Pull | Gold | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 1 | Board to Board Cable | 0.14 in | 3.56 mm | 0.318 " | 8.08 mm | 0.2 in | 5.08 mm | ||||||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole | 2 | 125 °C | -65 ░C | Push-Pull | Gold | 5.58 mm | 0.22 in | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 2 | Board to Board Cable | 0.1 in | 2.54 mm | 0.318 " | 8.08 mm | 0.638 in | 16.21 mm | ||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole | 2 | 125 °C | -65 ░C | Push-Pull | Gold | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 2 | Board to Board Cable | 0.1 in | 2.54 mm | 0.23 in | 0.82 in | 20.83 mm | 1.15 in | 29.21 mm | 5.84 mm | ||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole | 1 | 125 °C | -65 ░C | Push-Pull | Gold | 15.75 mm | 0.62 in | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 1 | Board to Board Cable | 0.1 in | 2.54 mm | 0.23 in | 0.95 in | 24.13 mm | 5.84 mm | ||||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole | 1 | 125 °C | -65 ░C | Push-Pull | Gold | 5.58 mm | 0.22 in | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 1 | Board to Board Cable | 0.1 in | 2.54 mm | 0.318 " | 8.08 mm | 0.638 in | 16.21 mm | ||||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole | 2 | 125 °C | -65 ░C | Push-Pull | Gold | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 2 | Board to Board Cable | 0.1 in | 2.54 mm | 0.23 in | 0.12 in | 3.05 mm | 0.45 " | 11.43 mm | 5.84 mm | ||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole | 1 | 125 °C | -65 ░C | Push-Pull | Gold | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 1 | Board to Board Cable | 0.1 in | 2.54 mm | 0.23 in | 0.12 in | 3.05 mm | 0.45 " | 11.43 mm | 5.84 mm | ||||||
Sullins Connector Solutions | 3 A | Black | 2.54 µm | 100 µin | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Solder | All | UL94 V-0 | 10 çin | 0.25 çm | Through Hole | 2 | 125 °C | -65 ░C | Push-Pull | Gold | Polybutylene Terephthalate (PBT) | Male Pin | Breakaway Header | Tin | Unshrouded | 2 | Board to Board Cable | 0.1 in | 2.54 mm | 0.23 in | 0.32 in | 8.13 mm | 0.65 in | 5.84 mm | 16.51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.15 | |||
Description
General part information
PBC01 Series
Connector Header Through Hole 2 position
