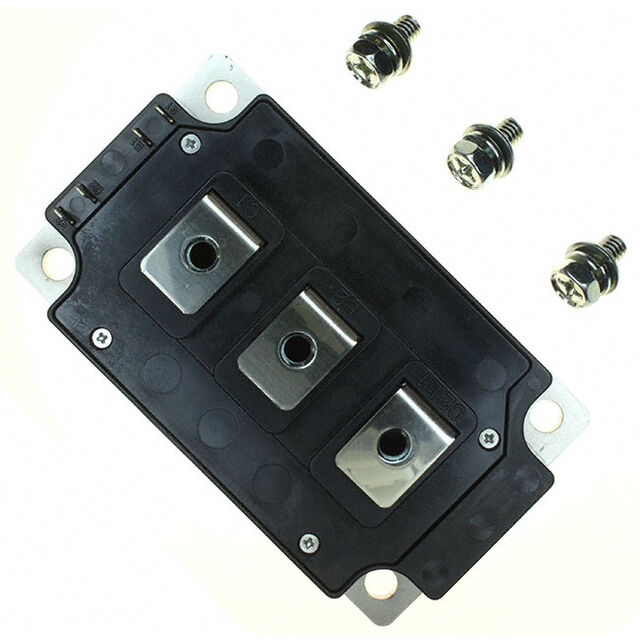

CM400DY-12NF
UnknownPowerex Inc.
IGBT MOD 600V 400A 1130W
CM400DY-12NF
UnknownPowerex Inc.
IGBT MOD 600V 400A 1130W
Description
General part information
CM400DY-12NF
IGBT Module Half Bridge 600 V 400 A 1130 W Chassis Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | CM400DY-12NF |
|---|---|
| Configuration | Half Bridge |
| Current - Collector (Ic) (Max) | 400 A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 60 nF |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | Module |
| Power - Max | 1130 W |
| Vce(on) (Max) | 2.2 V |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
