BK/ABC-V-20-R

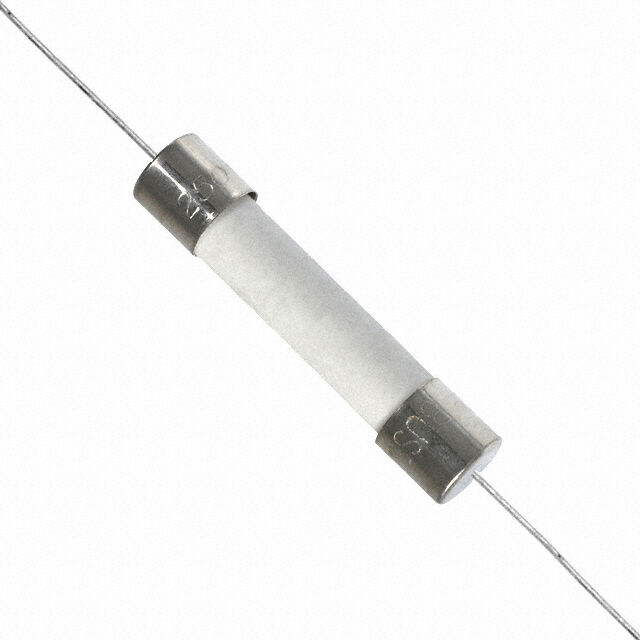

20 A 250 V AC 125 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/ABC-V-20-R |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 400 A |
| Breaking Capacity (DC) | 10 kA |
| Current Rating | 20 A |
| DC Cold Resistance | 0.00366 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 550.8 |
| Mounting Type | Through Hole |
| Package Diameter | 0.25 in |
| Package Features | Axial |
| Package Length | 0.25 in, 1.25 in |
| Package Name | 3AB, 3AG |
| Package Width | 1.25 in |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.266 in |
| Size / Dimension Length | 1.292 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
