1201089144

Active

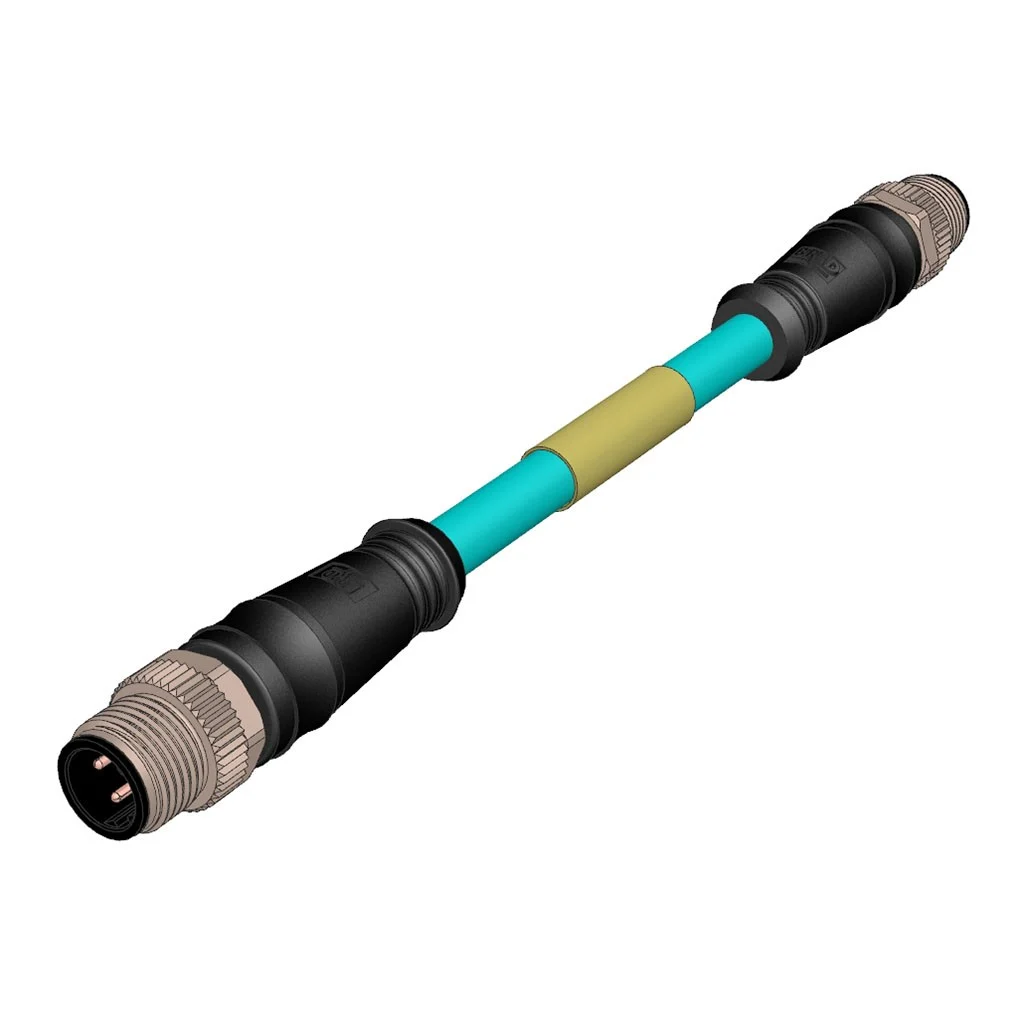

MICRO-CHANGE (M12) DOUBLE-ENDED CORDSET, 8-POLE X-CODED MALE (STRAIGHT) TO 4-POLE D-CODED MALE (STRAIGHT), 24 AWG, TEAL TPE CABLE, 80.0M (262.40') LENGTH

Find alt

Alpha

1201089144

Active

Molex

MICRO-CHANGE (M12) DOUBLE-ENDED CORDSET, 8-POLE X-CODED MALE (STRAIGHT) TO 4-POLE D-CODED MALE (STRAIGHT), 24 AWG, TEAL TPE CABLE, 80.0M (262.40') LENGTH

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

120108 Series

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Male (90°) to Male (90°), 24 AWG, Teal TPE Cable, 27.0m (88.58') Length

Technical Specifications

Parameters and characteristics for this part

Specification	1201089144

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Male Pins
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	4 positions
2nd Connector Orientation	X
2nd Connector Shell Size - Insert (Code)	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Thermoplastic Elastomer (TPE)
Cable Type	Round
Color	Teal
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	262.5 ft
Shielding	Unshielded
Usage	Industrial Environments, Cat5e

120108 Series

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Male (90°) to Male (90°), 24 AWG, Teal TPE Cable, 27.0m (88.58') Length

...

Part	Color	Shielding	Length	Connector Pin Count	Connector Type	Cable Type	2nd Connector Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	2nd Connector Shell Size - Insert (Code)	1st Connector Mounting Type	Usage	Assembly Configuration	1st Connector Number of Positions Loaded	1st Connector Gender	1st Connector Type	1st Connector Number of Positions	1st Connector Shell Size - Insert	2nd Connector Mounting Type	Cable Material	2nd Connector Gender	2nd Connector Type	2nd Connector Number of Positions Loaded
Molex 1300480308	Teal	Unshielded	65.62 ft	4 pos	8p4c Circular Male to RJ45	Round
Molex 1201080093	Green	Shielded	32.8 ft			Round	4	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Industrial Environments	Standard	All	Male Pins	Plug	4 positions	M12	Free Hanging (In-Line)	Polyurethane (PUR)	Male Pins	Plug	All
Molex 1201088058		Unshielded	6.56 ft	4 pos	8p4c Circular Male to RJ45	Round
Molex 1201088212
Molex 1201080486
Molex 1201080049	Teal	Shielded	1.97 ft			Round	4	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Industrial Environments	Standard	All	Male Pins	Plug Right Angle	4 positions	M12	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Male Pins	Plug	All
Molex 1201080522	Green	Shielded	6.56 ft	4 pos	8p4c Circular Male to RJ45	Round
Molex 1201088527	Teal	Shielded	295.28 ft	4 pos	8p8c Circular Male to RJ45	Round
Molex 1201085049	Green	Shielded	32.81 ft	8 pos	8p8c Circular Male to RJ45	Round
Molex 1201088151	Blue	Unshielded	13.12 ft	4 pos	8p4c Circular Male to RJ45	Round
