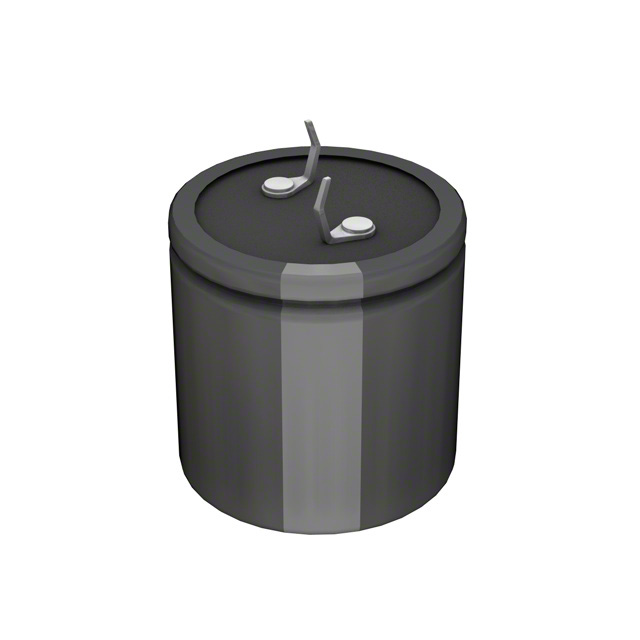

LPW103M1AO25V-W
ObsoleteCornell Dubilier Knowles
CAP ALUM 10000UF 20% 10V SNAP TH
LPW103M1AO25V-W
ObsoleteCornell Dubilier Knowles
CAP ALUM 10000UF 20% 10V SNAP TH
Description
General part information
LPW103M1AO25V-W
10000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 83mOhm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LPW103M1AO25V-W |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 µF |
| ESR (Equivalent Series Resistance) | 83 mOhm |
| Height - Seated (Max) | 0.984 in |
| Lead Spacing | 0.394 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 2.827 A, 2.57 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
