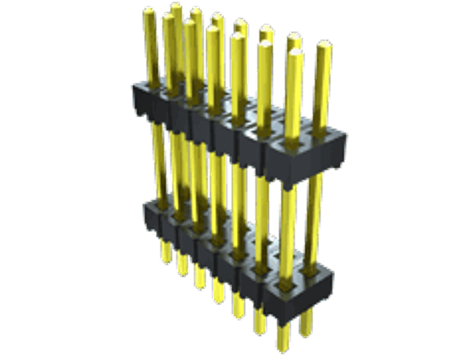

Specification	ZW-25-15-G-D-250-130

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	10 µin
Length - Overall Pin	0.63 in
Length - Post (Mating)	0.25 in
Length - Stack Height	0.25 in
Length - Tail	0.13 in
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	2
Pitch	0.1 in
Row Spacing	0.1 in
Termination	Solder

ZW Series

...

Part	Mounting Type	Number of Rows	Length - Stack Height	Length - Post (Mating)	Length - Overall Pin	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Pitch	Color	Number of Positions	Length - Tail	Row Spacing
Samtec Inc. ZW-03-11-G-S-590-230	Through Hole	1	0.59 in	0.11 in	0.93 in	Solder	10 µin	Gold	0.1 in	Black	3	0.23 in
Samtec Inc. ZW-03-11-G-D-400-250	Through Hole	2	0.4 in	0.28 in	0.93 in	Solder	10 µin	Gold	0.1 in	Black	6	0.25 in	0.1 in
Samtec Inc. ZW-03-11-T-D-395-295	Through Hole	2	0.395 in	0.24 in	0.93 in	Solder		Tin	0.1 in	Black	6	0.295 in	0.1 in
Samtec Inc. ZW-03-11-T-S-600-230	Through Hole	1	0.6 in	0.1 in	0.93 in	Solder		Tin	0.1 in	Black	3	0.23 in
Samtec Inc. ZW-03-11-T-S-275-475	Through Hole	1	0.275 in	0.18 in	0.93 in	Solder		Tin	0.1 in	Black	3	0.475 in
Samtec Inc. ZW-03-11-S-D-520-160-LL	Through Hole	2	0.52 in	0.25 in	0.93 in	Kinked Pin Solder	30 µin	Gold	0.1 in	Black	6	0.16 in	0.1 in
Samtec Inc. ZW-03-11-T-T-531-142	Through Hole	3	0.531 in	0.257 in	0.93 in	Solder		Tin	0.1 in	Black	9	0.142 in	0.1 in
Samtec Inc. ZW-03-11-T-S-532-126	Through Hole	1	0.532 in	0.272 in	0.93 in	Solder		Tin	0.1 in	Black	3	0.126 in
Samtec Inc. ZW-03-11-G-S-540-140	Through Hole	1	0.54 in	0.25 in	0.93 in	Solder	10 µin	Gold	0.1 in	Black	3	0.14 in
Samtec Inc. ZW-03-11-T-S-560-120-LL	Through Hole	1	0.56 in	0.25 in	0.93 in	Kinked Pin Solder		Tin	0.1 in	Black	3	0.12 in
