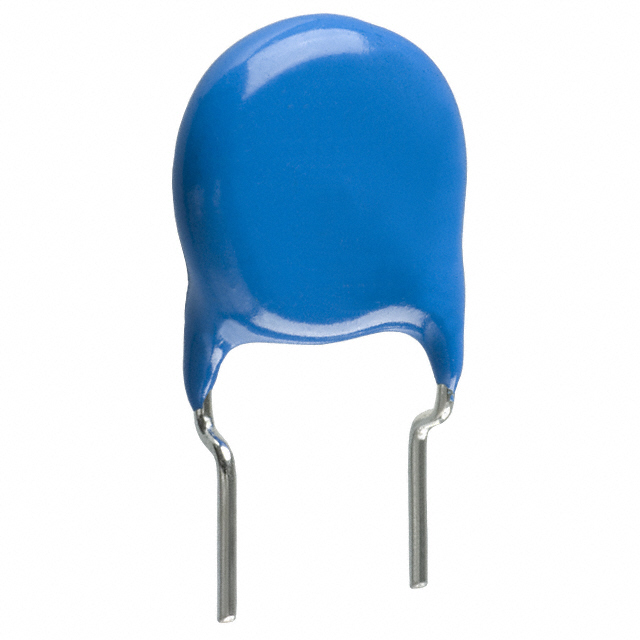

CK45-B3AD103KYNNA
ObsoleteTDK Corporation
CAP CER 10000PF 1KV RADIAL
CK45-B3AD103KYNNA
ObsoleteTDK Corporation
CAP CER 10000PF 1KV RADIAL
Description
General part information
CK45-B3AD103KYNNA
10000 pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CK45-B3AD103KYNNA |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 pF |
| Features | High Voltage |
| Height - Seated (Max) | 0.61 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.453 in |
| Temperature Coefficient | B |
| Tolerance | 10 % |
| Voltage - Rated | 1000 V |
