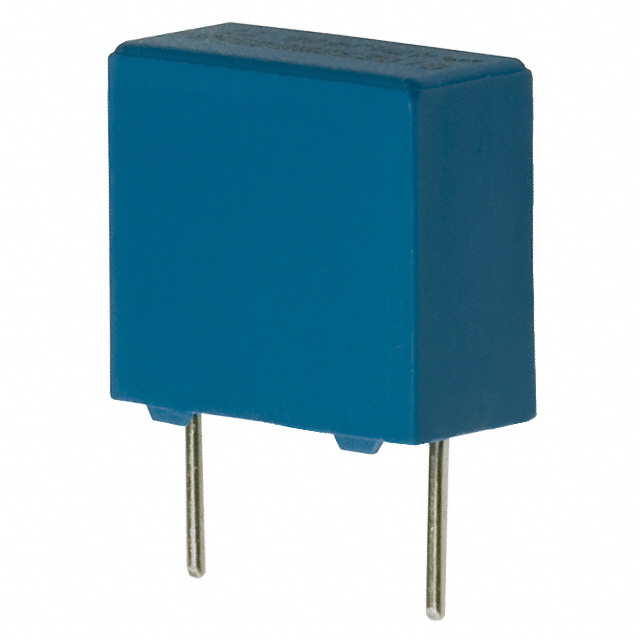

Specification	B32621A6273K000

Applications	High Pulse, DV/DT
Capacitance	0.027 µF
Dielectric Material	Metallized - Stacked, Polypropylene (PP)
Lead Spacing	0.394 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	400 Vpk
Voltage Rating - DC	630 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
