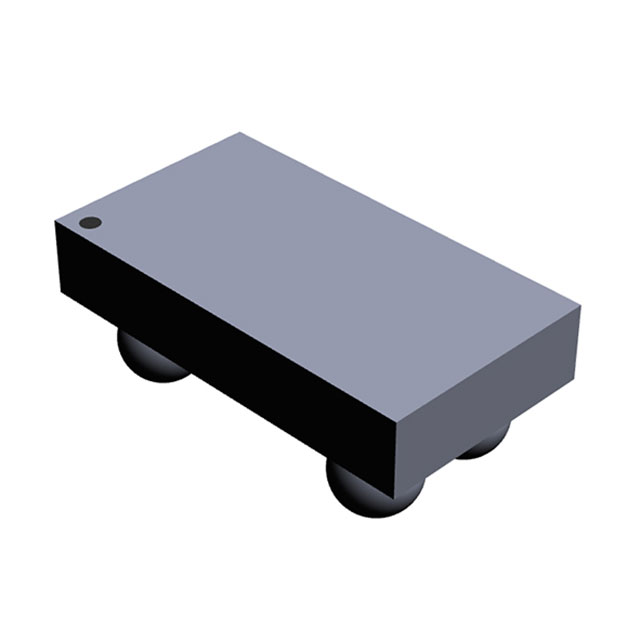

ASTMKJ-32.768KHZ-MP-AA3-T3
ObsoleteAbracon LLC
MEMS OSC XO 32.7680KHZ NANODRIVE
ASTMKJ-32.768KHZ-MP-AA3-T3
ObsoleteAbracon LLC
MEMS OSC XO 32.7680KHZ NANODRIVE
Description
General part information
ASTMKJ-32.768KHZ-MP-AA3-T3
32.768 kHz XO (Standard) NanoDrive™ Oscillator 1.2V ~ 3.63V 4-UFBGA, CSPBGA
Technical Specifications
Parameters and characteristics for this part
| Specification | ASTMKJ-32.768KHZ-MP-AA3-T3 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) | 1.3 µA |
| Frequency | 0.032768 MHz |
| Frequency Stability | 75 ppm |
| Height - Seated (Max) | 0.024 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output | NanoDrive™ |
| Package / Case | 4-UFBGA, CSPBGA |
| Size / Dimension Length | 0.061 in |
| Size / Dimension Width | 0.033 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 1.2 V |
