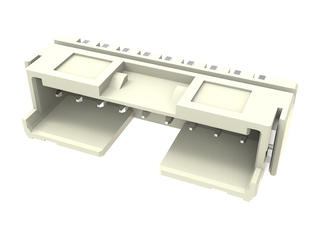

Specification	2159320970

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	39.4 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.287 in
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

215932 Series

Part	Contact Finish Thickness - Mating	Contact Finish - Post	Fastening Type	Number of Rows	Contact Shape	Pitch - Mating	Mounting Type	Shrouding	Insulation Material	Current Rating	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Number of Positions	Contact Finish - Mating	Features	Style	Contact Type	Connector Type	Contact Material	Voltage Rating	Voltage Rating (Type)	Current Rating	Contact Finish Thickness - Post
Molex 2159320771	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	3.5 A	UL94 V-0	Black	All	Solder	-55 °C	105 °C	0.287 in	7	Tin	Glow Wire Compliant Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V	DC
Molex 2159320670	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0 A	UL94 V-0	Natural	All	Solder	-40 °C	105 °C	0.276 in	6	Tin	Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V	DC	Varies by Wire Gauge	39.4 µin
Molex 2159321570	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0 A	UL94 V-0	Natural	All	Solder	-55 °C	105 °C	0.287 in	15	Tin	Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V		Varies by Wire Gauge	39.4 µin
Molex 2159321270	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0 A	UL94 V-0	Natural	All	Solder	-55 °C	105 °C	0.287 in	12	Tin	Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V		Varies by Wire Gauge	39.4 µin
Molex 2159320870	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0 A	UL94 V-0	Natural	All	Solder	-55 °C	105 °C	0.287 in	8	Tin	Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V		Varies by Wire Gauge	39.4 µin
Molex 2159320571	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	3.5 A	UL94 V-0	Black	All	Solder	-55 °C	105 °C	0.287 in	5	Tin	Glow Wire Compliant Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V	DC
Molex 2159320370	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0 A	UL94 V-0	Natural	All	Solder	-40 °C	105 °C	0.276 in	3	Tin	Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V	DC	Varies by Wire Gauge	39.4 µin
Molex 2159321571	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	3.5 A	UL94 V-0	Black	All	Solder	-55 °C	105 °C	0.287 in	15	Tin	Glow Wire Compliant Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V	DC
Molex 2159320371	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	3.5 A	UL94 V-0	Black	All	Solder	-55 °C	105 °C	0.287 in	3	Tin	Glow Wire Compliant Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V	DC
Molex 2159320471	39.4 µin	Tin	Locking Ramp	1	Square	0.098 in	Right Angle Surface Mount	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	3.5 A	UL94 V-0	Black	All	Solder	-55 °C	105 °C	0.287 in	4	Tin	Glow Wire Compliant Solder Retention	Board Cable/Wire	Male Pin	Header	Brass	250 V	DC
