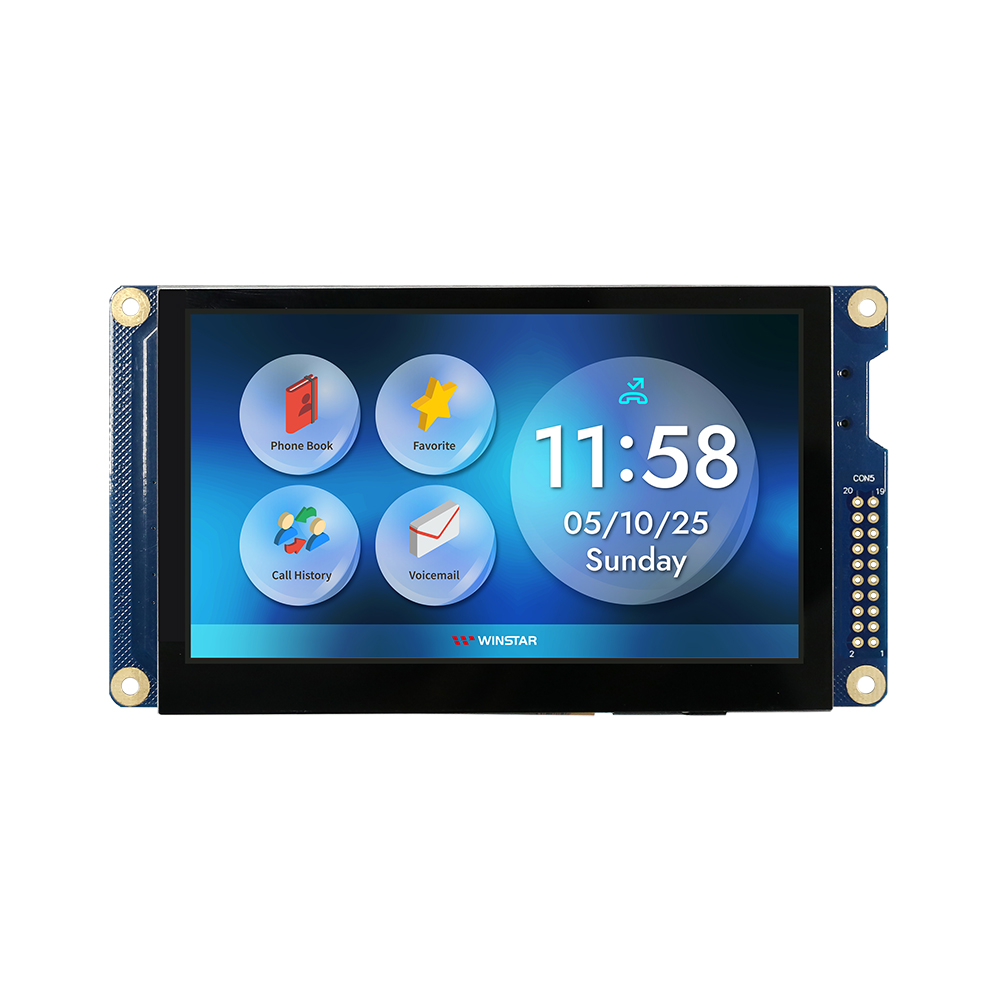

WF43WTYBEDSG0
ActiveWinstar Display
4.3 IPS TFT 480X272 SPI/QSPI CAP
WF43WTYBEDSG0
ActiveWinstar Display
4.3 IPS TFT 480X272 SPI/QSPI CAP
Description
General part information
WF43WTYBEDSG0
Graphic LCD Display Module
Technical Specifications
Parameters and characteristics for this part
| Specification | WF43WTYBEDSG0 |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | BT815, ILI2130 |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 480 pixels |
| Dot Pixels (Vertical) | 272 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | SPI |
| Touchscreen | Capacitive |
| Viewing Area Height | 54.66 mm |
| Viewing Area Width | 96.24 mm |
