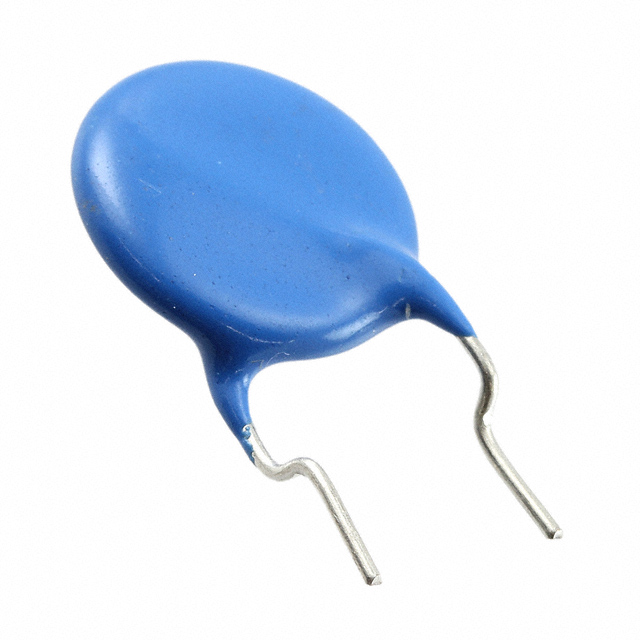

CC45SL3FD221JYNNA
ActiveTDK Corporation
CAP CERAMIC SINGLE 220PF 3000V SL 5% (12 X 6MM) RADIAL DISC 7.5MM 125°C BULK
CC45SL3FD221JYNNA
ActiveTDK Corporation
CAP CERAMIC SINGLE 220PF 3000V SL 5% (12 X 6MM) RADIAL DISC 7.5MM 125°C BULK
Description
General part information
CC45SL3FD221JYNNA
220 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CC45SL3FD221JYNNA |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 pF |
| Features | Low Dissipation Factor, High Voltage |
| Height - Seated (Max) | 0.63 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.472 in |
| Temperature Coefficient | SL |
| Tolerance | 5 % |
| Voltage - Rated | 3000 V |
