0800-3111-111

Active

Advanced Photonix

SENSOR PHOTODIOD 900-1700NM TO46

Search across all available documentation for this part.

Active

Advanced Photonix

SENSOR PHOTODIOD 900-1700NM TO46

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIOD 900-1700NM TO46

Part	Wavelength [Min]	Wavelength [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color - Enhanced	Package / Case	Current - Dark (Typ)	Responsivity @ nm [custom]	Responsivity @ nm [custom]	Voltage - DC Reverse (Vr) (Max) [Max]
Advanced Photonix 0800-3111-111	900 nm	1700 nm	100 °C	-40 °C	Through Hole	Infrared (NIR), Red	TO-46-3 Lens Top Metal Can	500 pA	0.83 A/W	0.95 A/W	35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

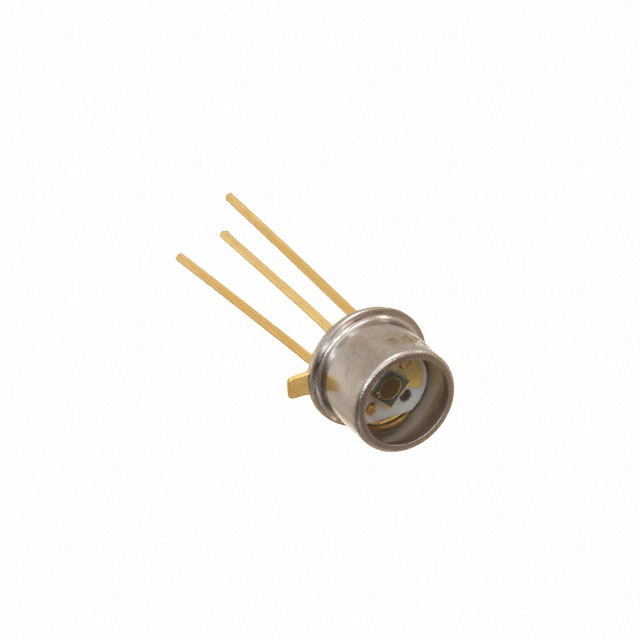

Photodiode 900nm ~ 1700nm TO-46-3 Lens Top Metal Can

Technical documentation and resources
