501-0087
ActiveNTE Electronics, Inc

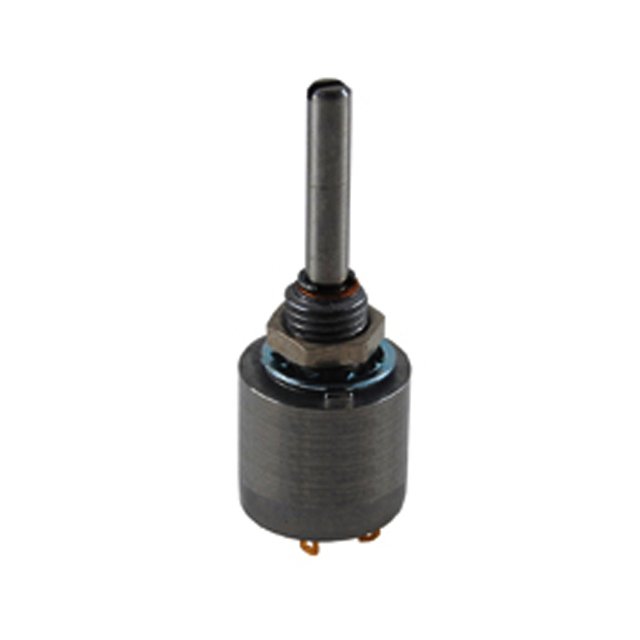

POT 500 OHM 1/2W CARBON LINEAR
501-0087
ActiveNTE Electronics, Inc
POT 500 OHM 1/2W CARBON LINEAR
Description
General part information
501-0087
500 Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Carbon 0.5W, 1/2W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 501-0087 |
|---|---|
| Actuator Diameter | 3.175 mm |
| Actuator Length | 0.875 in |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 1/4-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 500 Ohm |
| Resistive Material | Carbon |
| Rotation | 295 ° |
| Size - Body Diameter | 0.51 in |
| Size - Body Height | 0.469 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
