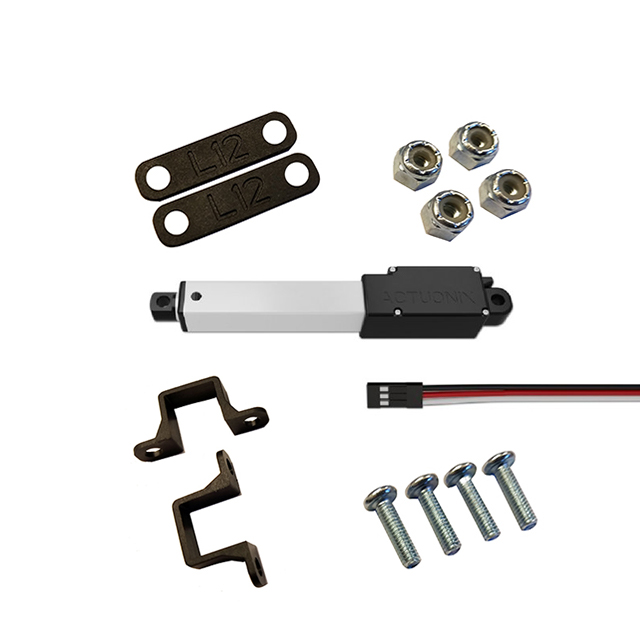

L12-50-50-6-R

Active

Actuonix Motion Devices Inc

L12 -R MICRO LINEAR SERVO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L12-50-50-6-R

Active

Actuonix Motion Devices Inc

L12 -R MICRO LINEAR SERVO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.00

Description

General part information

L12-50 Series

L12 -R MICRO LINEAR SERVO

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L12-50-50-6-R	L12-50 Series

Accuracy	0.3 mm	0.3 mm
Construction	Ball Screw	Ball Screw
Duty Cycle	20 %	20 %
Features	RC Linear Servo	Integrated Controller, Limit Switches, RC Linear Servo
Feedback Type	-	Potentiometer
Gear Reduction Ratio	50	50 - 210
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Load Force (Dynamic)	-	9.44 - 17.99 lbf
Load Force (Dynamic)	-	42 - 80 N
Load Force (Static)	200 N	200 N
Load Force (Static)	44.96 lbf	44.96 lbf
Motor Type	Brushed	Brushed
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Speed	25 mm/s	6.6 - 25 mm/s
Speed	0.98 in/s	0.26 - 0.98 in/s
Stroke Length	50 mm	50 mm
Stroke Length	1.969 in	1.969 in
Type	Linear Actuator	Linear Actuator
Voltage - Rated	6 VDC	6 - 12 VDC

L12-50 Series

L12-I MICRO LINEAR ACTUATOR

Part	Gear Reduction Ratio	Type	Motor Type	Voltage - Rated	Construction	Load Force (Static)	Load Force (Static)	Features	Load Force (Dynamic)	Load Force (Dynamic)	Speed	Speed	Duty Cycle	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Feedback Type	Ingress Protection	Accuracy	Stroke Length	Stroke Length
Actuonix Motion Devices Inc L12-50-210-6-I	210	Linear Actuator	Brushed	6 VDC	Ball Screw	200 N	44.96 lbf	Integrated Controller	17.99 lbf	80 N	0.26 in/s	6.6 mm/s	20 %	-10 °C	50 °C	Potentiometer	IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-50-12-P	50	Linear Actuator	Brushed	12 VDC	Ball Screw	200 N	44.96 lbf				0.98 in/s	25 mm/s	20 %	-10 °C	50 °C	Potentiometer	IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-210-6-P	210	Linear Actuator	Brushed	6 VDC	Ball Screw	200 N	44.96 lbf		17.99 lbf	80 N	0.26 in/s	6.6 mm/s	20 %	-10 °C	50 °C	Potentiometer	IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-50-12-I	50	Linear Actuator	Brushed	12 VDC	Ball Screw	200 N	44.96 lbf	Integrated Controller			0.98 in/s	25 mm/s	20 %	-10 °C	50 °C	Potentiometer	IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-100-12-S	100	Linear Actuator	Brushed	12 VDC	Ball Screw	200 N	44.96 lbf	Limit Switches	9.44 lbf	42 N			20 %	-10 °C	50 °C		IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-50-6-P	50	Linear Actuator	Brushed	6 VDC	Ball Screw	200 N	44.96 lbf				0.98 in/s	25 mm/s	20 %	-10 °C	50 °C	Potentiometer	IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-100-12-P	100	Linear Actuator	Brushed	12 VDC	Ball Screw	200 N	44.96 lbf		9.44 lbf	42 N			20 %	-10 °C	50 °C	Potentiometer	IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-100-6-I	100	Linear Actuator	Brushed	6 VDC	Ball Screw	200 N	44.96 lbf	Integrated Controller	9.44 lbf	42 N			20 %	-10 °C	50 °C	Potentiometer	IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-100-6-P	100	Linear Actuator	Brushed	6 VDC	Ball Screw	200 N	44.96 lbf		9.44 lbf	42 N			20 %	-10 °C	50 °C	Potentiometer	IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
Actuonix Motion Devices Inc L12-50-100-6-S	100	Linear Actuator	Brushed	6 VDC	Ball Screw	200 N	44.96 lbf	Limit Switches	9.44 lbf	42 N			20 %	-10 °C	50 °C		IP54 - Dust Protected, Water Resistant	0.3 mm	50 mm	1.969 in
