1181/50C SL001

Active

ALPHA WIRE

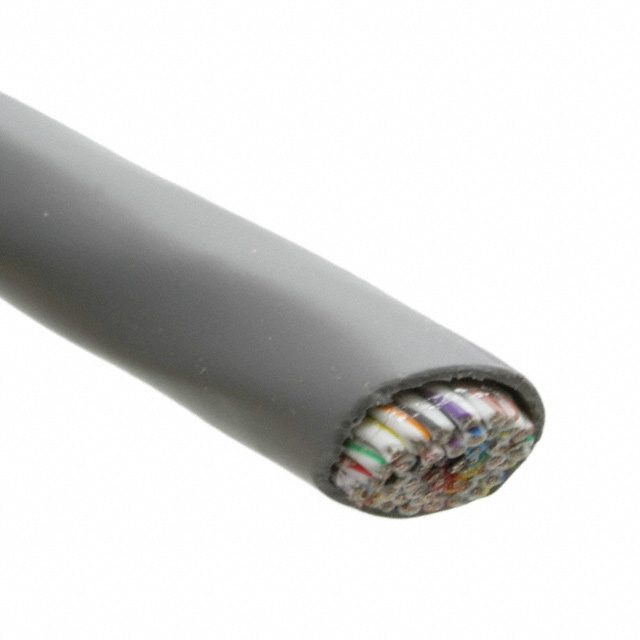

CABLE 50COND 22AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 50COND 22AWG SLATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1181/50C SL001	1181/50C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.478 in	0.478 in
Jacket (Insulation) Diameter [diameter]	12.14 mm	12.14 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm	0.889 mm
Jacket (Insulation) Thickness	0.035 in	0.035 in
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	100 - 500 '
Length	-	30.5 - 152.4 m
Number of Conductors	50	50
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 50COND 22AWG SLATE 500'

Part	Number of Conductors	Conductor Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Cable Type	Length [x]	Length [x]	Jacket Color	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length
ALPHA WIRE 1181/50C SL002	50	Copper, Tinned	Communication, Control	0.889 mm	0.035 in	0.478 in	12.14 mm	22 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	500 '	152.4 m	Slate	Poly-Vinyl Chloride (PVC)	7	30 AWG	300 V	-20 C	80 C
ALPHA WIRE 1181/50C SL001	50	Copper, Tinned	Communication, Control	0.889 mm	0.035 in	0.478 in	12.14 mm	22 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor			Slate	Poly-Vinyl Chloride (PVC)	7	30 AWG	300 V	-20 C	80 C	1000 ft	304.8 m
ALPHA WIRE 1181/50C SL005	50	Copper, Tinned	Communication, Control	0.889 mm	0.035 in	0.478 in	12.14 mm	22 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 ft	30.5 m	Slate	Poly-Vinyl Chloride (PVC)	7	30 AWG	300 V	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.26

General part information

50 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
