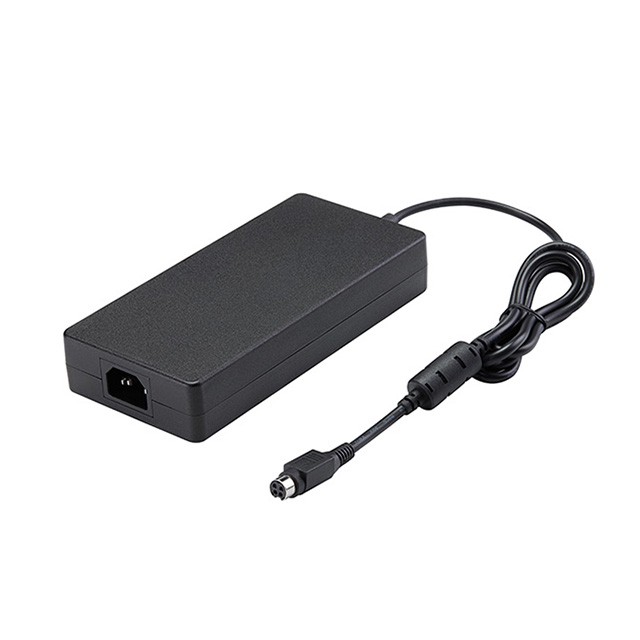

FSP230-AWAN3

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 54V 230W

Search across all available documentation for this part.

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 54V 230W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 54V 230W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Input Type	Form	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Applications	Output Connector	Output Connector	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption	Input Connector	Cord Length	Cord Length	Region Utilized	Current - Output (Max) [Max]	Standard Number	Voltage - Output	Efficiency
FSP Technology Inc. FSP230-AWAN3	90 VAC	264 VAC	CB, CCC, CE, cULus, FCC, GS, TUV, VCCI	Cord	Desktop (Class I)	1.27 in	32.2 mm	6.97 in	3.37 "	177 mm	85.6 mm	230 W	ITE (Commercial)	4 Pin	Power DIN	70 °C	0 °C	500 mW	IEC 320-C14	1.5 m	59 in	International	4.26 A	60950-1, 62368-1	54 V	CoC Tier 2, Level VI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

54V 230 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
