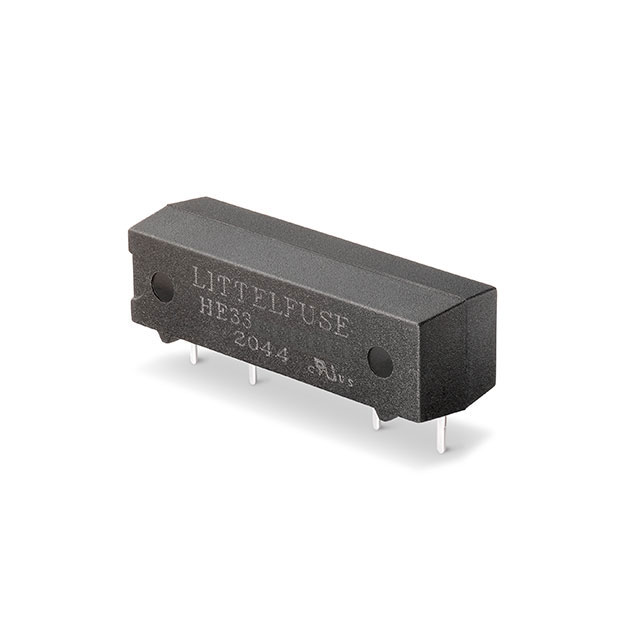

HE3321A0440
ObsoleteLITTELFUSE
RELAY REED SPST 500MA 5V
HE3321A0440
ObsoleteLITTELFUSE
RELAY REED SPST 500MA 5V
Description
General part information
HE3321A0440
RELAY REED SPST 500MA 5V
Technical Specifications
Parameters and characteristics for this part
| Specification | HE3321A0440 |
|---|---|
| Coil Current | 10 mA |
| Coil Resistance | 500 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 V |
| Contact Form | SPST-NO |
| Contact Rating (Current) | 500 mA |
| Features | EMI Shielded |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 1 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 1 ms |
| Switching Voltage DC (Max) | 200 VDC |
| Termination Style | PC Pin |
