0406ABSP
ActiveKanebridge
SELF-TAPPING SCREW - TYPE AB - S
0406ABSP
ActiveKanebridge
SELF-TAPPING SCREW - TYPE AB - S
Description
General part information
0406ABSP

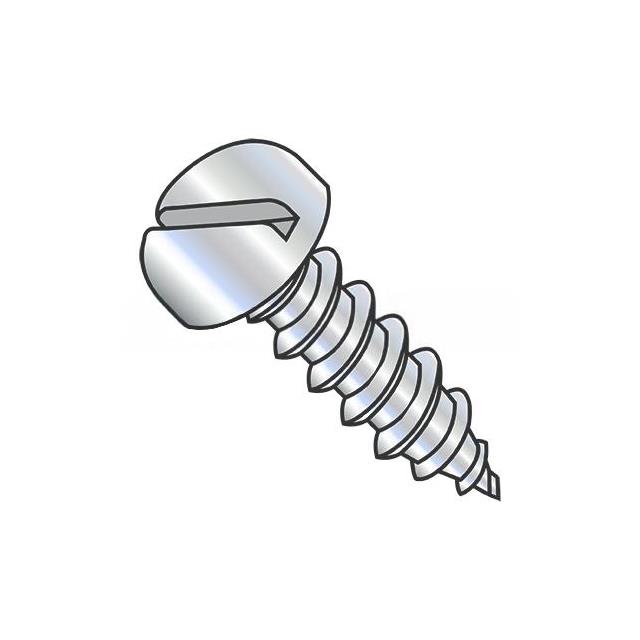

#4-24 Pan Head Self-Tapping Screw Slotted Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0406ABSP |
|---|---|
| Drive Type | Slotted |
| Features | Standard |
| Head Diameter | 0.212 in |
| Head Height | 0.063 in |
| Length - Below Head | 0.375 in |
| Length - Overall | 0.438 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Pan Head |
| Thread Size (Max) | 24 mm |
| Thread Size (Min) | 4 mm |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
