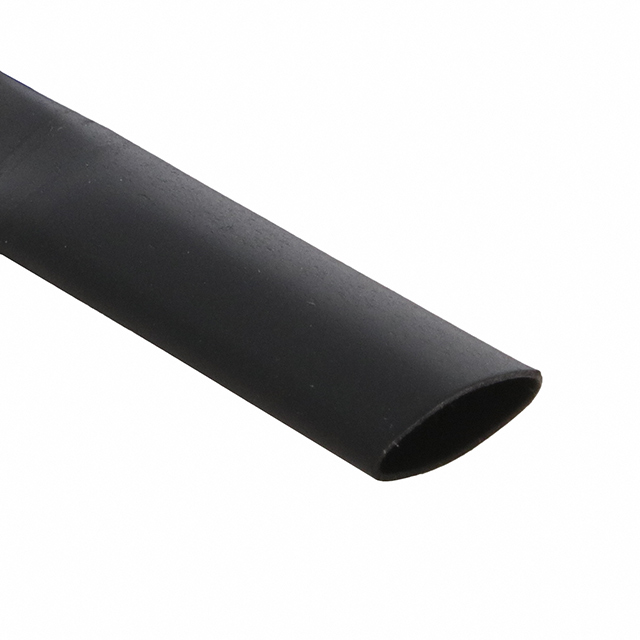

W3B2 6/2 BLACK 4FT

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE W3B2-HEAT-SHRINK 1=1PC

Search across all available documentation for this part.

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE W3B2-HEAT-SHRINK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	W3B2 6/2 BLACK 4FT

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered	0.079 in
Inner Diameter - Recovered	2.01 mm
Inner Diameter - Supplied [diameter]	0.252 "
Inner Diameter - Supplied [diameter]	6.4 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.047 "
Recovered Wall Thickness	1.19 mm
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

SUMITUBE W3B2-HEAT-SHRINK 1=1PC

Part	Recovered Wall Thickness	Recovered Wall Thickness	Type	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Length [x]	Length [x]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Recovered	Inner Diameter - Recovered	Material
Sumitomo Electric Interconnect Products, Inc. W3B2 6/2 BLACK 4FT	0.047 "	1.19 mm	Tubing, Flexible	Black	0.252 "	6.4 mm	Adhesive Lined, Flame Retardant	-55 °C	125 °C	110 °C	1.22 m	4 ft	1	3	0.079 in	2.01 mm	Polyolefin (PO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.252" (6.40mm) 3 to 1 Black 4.00' (1.22m)
