TL6330AF400Q

Active

E-Switch

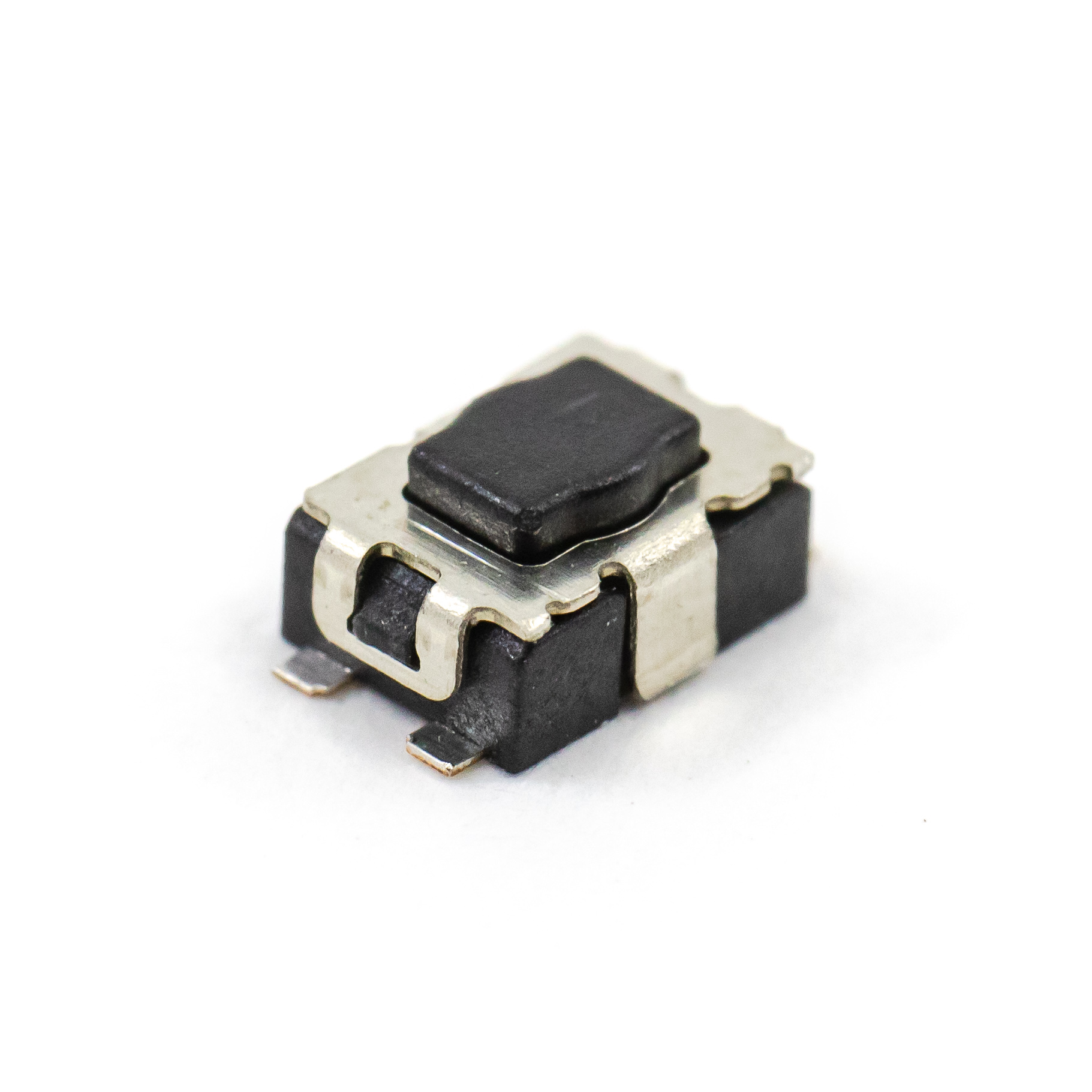

SWITCH TACTILE SPST-NO 0.05A 32V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 32V

Technical Specifications

Parameters and characteristics for this part

Specification	TL6330AF400Q

Actuator Height off PCB, Vertical	1.9 mm
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount
Operating Force	400 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.6 mm
Outline [y]	2.8 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	SMD (SMT) Tab

Part	Termination Style	Switch Function	Contact Rating @ Voltage	Outline [x]	Outline [y]	Illumination	Circuit	Mounting Type	Actuator Type	Mechanical Life	Switch Travel	Actuator Orientation	Operating Force	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Height off PCB, Vertical
E-Switch TL6330BF200Q	SMD (SMT) Tab	Off-Mom	0.05 A	4.6 mm	2.8 mm	Non-Illuminated	SPST-NO	Surface Mount	Rectangular Button	200000 Cycles	0.25 mm	Top Actuated	200 gf	2.5 mm	85 °C	-40 °C	IP67 - Dust Tight Waterproof
E-Switch TL6330AF400Q	SMD (SMT) Tab	Off-Mom	0.05 A	4.6 mm	2.8 mm	Non-Illuminated	SPST-NO	Surface Mount	Rectangular Button	200000 Cycles	0.25 mm	Top Actuated	400 gf		85 °C	-40 °C	IP67 - Dust Tight Waterproof	1.9 mm
E-Switch TL6330AF200Q	SMD (SMT) Tab	Off-Mom	0.05 A	4.6 mm	2.8 mm	Non-Illuminated	SPST-NO	Surface Mount	Rectangular Button	200000 Cycles	0.25 mm	Top Actuated	200 gf		85 °C	-40 °C	IP67 - Dust Tight Waterproof	1.9 mm
E-Switch TL6330BF300Q	SMD (SMT) Tab	Off-Mom	0.05 A	4.6 mm	2.8 mm	Non-Illuminated	SPST-NO	Surface Mount	Rectangular Button	200000 Cycles	0.25 mm	Top Actuated	300 gf	2.5 mm	85 °C	-40 °C	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	14000	$ 0.38

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

No documents available
