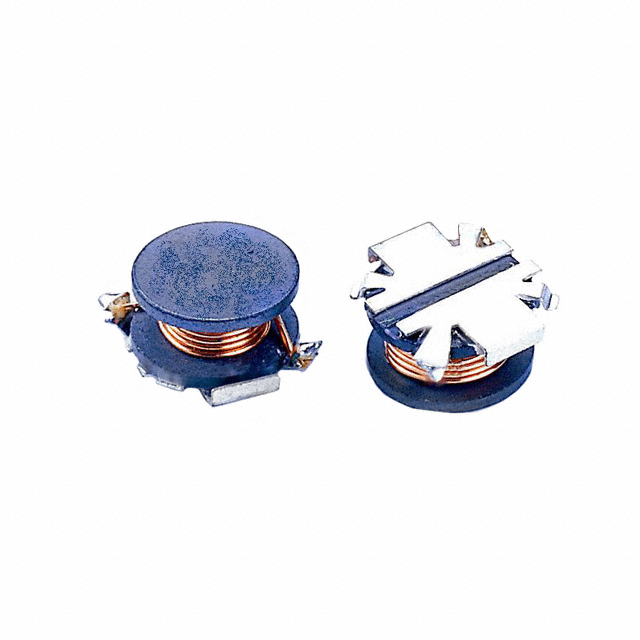

SCH114-181
ActiveSignal Transformer
FIXED IND 180UH 900MA 589MOHM SM
SCH114-181
ActiveSignal Transformer
FIXED IND 180UH 900MA 589MOHM SM
Description
General part information
SCH114-181
180 µH Unshielded Wirewound Inductor 900 mA 589mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCH114-181 |
|---|---|
| Current - Saturation (Isat) | 1 A |
| Current Rating | 900 mA |
| DC Resistance (DCR) (Max) | 589 mOhm |
| Height - Seated (Max) | 0.193 in |
| Inductance | 180 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.409 in |
| Size / Dimension Width | 0.409 in |
| Tolerance | 10 % |
| Type | Wirewound |
