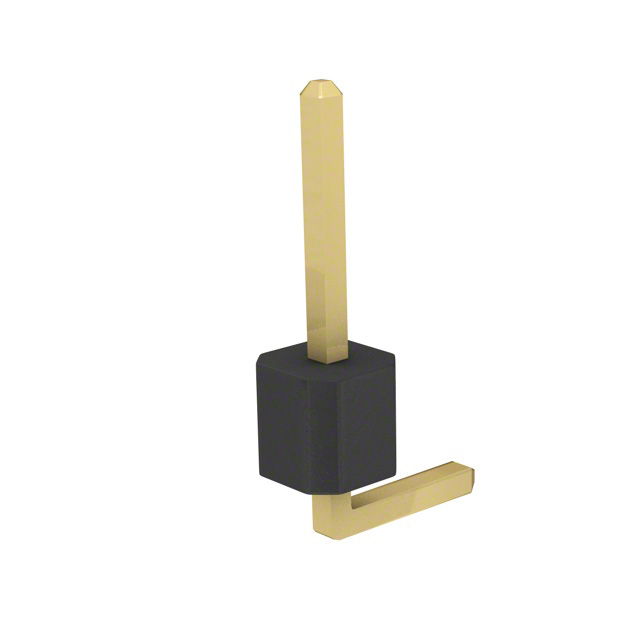

NRPN011PARN-RC

Active

Sullins Connector Solutions

CONN HEADER R/A 1POS

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HEADER R/A 1POS

Technical Specifications

Parameters and characteristics for this part

Specification	NRPN011PARN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	150 VDC

Part	Contact Shape	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Mating	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Shrouding	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Voltage Rating	Material Flammability Rating	Contact Material	Connector Type	Style	Termination	Contact Type	Number of Positions	Contact Finish Thickness - Post	Number of Rows	Fastening Type	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions NRPN011PARN-RC	Square	Nylon 6T Polyamide (PA6T)	All	Flash	2 A	Through Hole Right Angle	-40 °C	105 ░C	0.141 in	3.6 mm	Black	Unshrouded	Gold	0.11 in	2.79 mm	Gold	0.079 in	2 mm	150 VDC	UL94 V-0	Brass	Header	Board to Board Cable	Solder	Male Pin	1	Flash	1	Push-Pull
Sullins Connector Solutions NRPN011PAEN-RC	Square	Nylon 6T Polyamide (PA6T)	All	Flash	2 A	Through Hole	-40 °C	105 ░C	0.141 in	3.6 mm	Black	Unshrouded	Gold	0.11 in	2.79 mm	Gold	0.079 in	2 mm	150 VDC	UL94 V-0	Brass	Header	Board to Board Cable	Solder	Male Pin	1	Flash	1	Push-Pull	8.4 mm	0.331 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 1 position

Technical documentation and resources

No documents available
