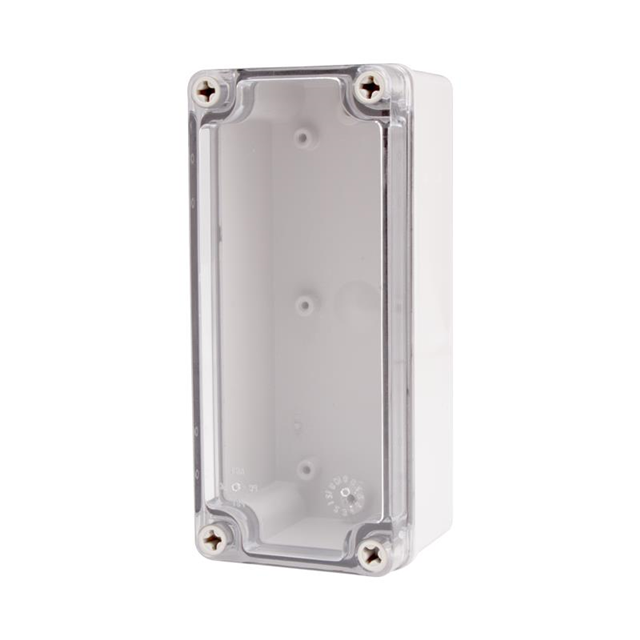

BC-CTS-081807

Active

Boxco

BOX PLASTIC CLR 7.09"L X 3.15"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-CTS-081807

Active

Boxco

BOX PLASTIC CLR 7.09"L X 3.15"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC-CTS-081807	BC-CTS Series

Area (L x W)	144 cm²	9.92 - 1064 in˛
Area (L x W)	22.3 in²	13.6 - 165 in˛
Area (L x W)	-	64 - 144 cm˛
Color	Light Gray, Clear Cover	Light Gray, Clear Cover
Container Type	Box	Box
Design	Lift-Off Screw Cover	Lift-Off Screw Cover
Features	Sealing Gasket, Wall Mount, Flame Retardant	Sealing Gasket, Wall Mount, Flame Retardant
Height [z]	70 mm	60 - 180 mm
Height [z]	2.756 "	2.362 - 7.087 in
Material	Plastic, Polycarbonate/Fiberglass	Plastic, Polycarbonate/Fiberglass
Material Flammability Rating	UL94 V-0, UL94 5VA, UL94 HB	UL94 V-0, UL94 5VA, UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67	NEMA 6, IP66, UL 508A, NEMA 4X, IP67
Size / Dimension	-	150 - 200 mm
Size / Dimension	-	200 - 250 mm
Size / Dimension [x]	7.087 "	3.15 - 14.961 in
Size / Dimension [x]	180 mm	7.874 - 380 mm
Size / Dimension [y]	3.15 in	3.15 - 11.024 in
Size / Dimension [y]	80 mm	5.906 - 280 mm

BC-CTS Series

BOX PLASTIC CLR 3.15"L X 3.15"W

Part	Height [z]	Height [z]	Container Type	Material Flammability Rating	Design	Features	Area (L x W)	Area (L x W)	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Color	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]
Boxco BC-CTS-080806	2.362 in	60 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount	64 cm˛	9.92 in˛	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	3.15 in	80 mm	80 mm	3.15 in	Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray
Boxco BC-CTS-151510	3.937 in	100 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount		225 cm²	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	5.906 in	150 mm	150 mm	5.906 "	Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray	34.9 in˛
Boxco BC-CTS-152510	3.937 in	100 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount		375 cm²	IP66, IP67, NEMA 4X, NEMA 6, UL 508A		9.843 "	5.906 "		Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray	58.1 in˛	150 mm	250 mm
Boxco BC-CTS-082507	2.756 "	70 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount		200 cm²	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	9.843 "	250 mm	80 mm	3.15 in	Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray	31 in²
Boxco BC-CTS-081808	3.346 in	85 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount	144 cm˛	22.3 in˛	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	7.087 "	180 mm	80 mm	3.15 in	Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray
Boxco BC-CTS-081807	2.756 "	70 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount		144 cm²	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	7.087 "	180 mm	80 mm	3.15 in	Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray	22.3 in²
Boxco BC-CTS-121207	2.953 in	75 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount		156 cm˛	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	4.921 in	125 mm	125 mm	4.921 "	Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray	24.2 in˛
Boxco BC-CTS-081107	2.756 "	70 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount		88 cm²	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	4.331 in	110 mm	80 mm	3.15 in	Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray	13.6 in˛
Boxco BC-CTS-202016	6.299 in	160 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount		400 cm²	IP66, IP67, NEMA 4X, NEMA 6, UL 508A		7.874 "	7.874 "		Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray	62 in²	200 mm	200 mm
Boxco BC-CTS-151507	2.953 in	75 mm	Box	UL94 5VA, UL94 HB, UL94 V-0	Lift-Off Screw Cover	Flame Retardant, Sealing Gasket, Wall Mount		225 cm²	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	5.906 in	150 mm	150 mm	5.906 "	Plastic, Polycarbonate/Fiberglass	Clear Cover, Light Gray	34.9 in˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.38

Description

General part information

BC-CTS Series

Box Plastic, Polycarbonate/Fiberglass Light Gray, Clear Cover Lift-Off Screw Cover 7.087" L x 3.150" W (180.00mm x 80.00mm) X 2.756" (70.00mm)
