1321247
ActivePhoenix Contact
RJ45 PCB CONNECTOR
1321247
ActivePhoenix Contact
RJ45 PCB CONNECTOR
Description
General part information
1321247

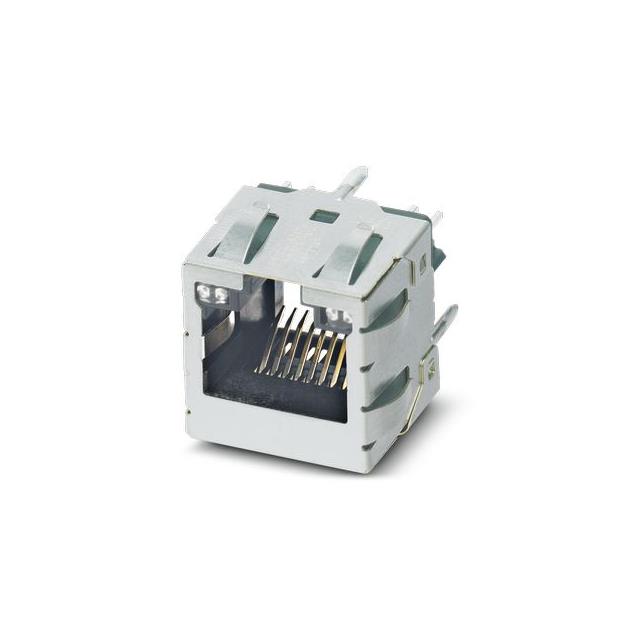

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded, EMI Finger
Technical Specifications
Parameters and characteristics for this part
| Specification | 1321247 |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Copper Alloy |
| Housing Material | Metal |
| Ingress Protection | IP20 |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Vertical |
| Shielding | EMI Finger, Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
