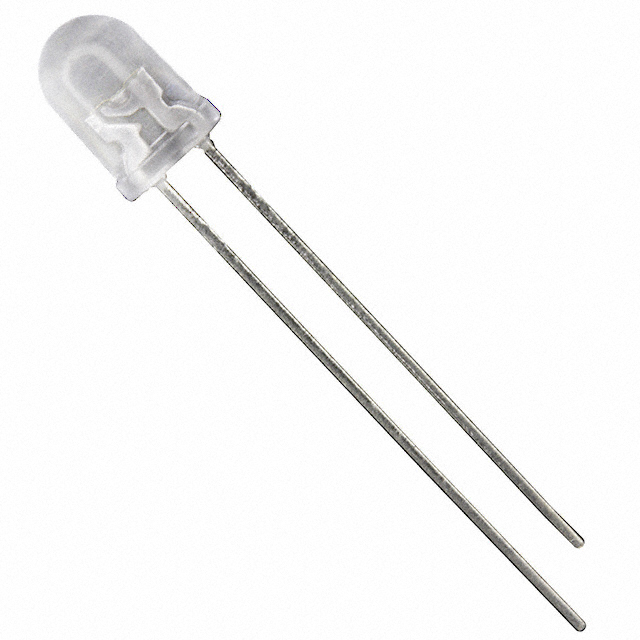

C513A-WSN-CV0Y0151

Obsolete

Cree LED

LED COOL WHITE CLR 5MM ROUND T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C513A-WSN-CV0Y0151

Obsolete

Cree LED

LED COOL WHITE CLR 5MM ROUND T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C513A-WSN-CV0Y0151	C513A Series

Color	Cool, White	White, Warm, Cool
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	7.6 mm
Height (Max) [Max] [z]	9.1 mm	9.1 - 12.2 mm
Lens Color	Colorless	Colorless
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Size [diameter]	5 mm Dia	5 mm Dia
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	5165 mcd	5165 - 8930 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	-	5 mm
Supplier Device Package [diameter]	5 mm	5 mm
Viewing Angle	55 °	55 °
Voltage - Forward (Vf) (Typ)	3.2 V	3.2 V
Wavelength - Dominant	-	2800 K
Wavelength - Dominant [custom]	9000 K	9000 K

C513A Series

LED UNI-COLOR WHITE 2-PIN T-1 3/4 AMMO

Part	Lens Style	Height (Max) [Max] [z]	Mounting Type	Wavelength - Dominant	Configuration	Viewing Angle	Color	Lens Color	Lens Size	Lens Size	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Lens Transparency	Current - Test	Package / Case	Millicandela Rating	Wavelength - Dominant [custom]	Lens Size [diameter]	Supplier Device Package [diameter]	Height (Max) [Max]
Cree LED C513A-MSN-CX0Z0512	Round with Domed Top	9.1 mm	Through Hole	2800 K	Standard	55 °	Warm, White	Colorless	T-1 3/4	5 mm	3.2 V	5 mm	Clear	20 mA	Radial	8090 mcd
Cree LED C513A-WSS-CY0Z0342	Round with Domed Top	12.2 mm	Through Hole		Standard	55 °	Cool, White				3.2 V			20 mA	Radial	8930 mcd	9000 K	5 mm Dia	5 mm
Cree LED C513A-MSN-CV0Y0132	Round with Domed Top		Through Hole	2800 K	Standard	55 °	Warm, White	Colorless			3.2 V		Clear	20 mA	Radial	5165 mcd		5 mm Dia	5 mm	7.6 mm
Cree LED C513A-MSS-CX0Z0232	Round with Domed Top	12.2 mm	Through Hole	2800 K	Standard	55 °	Warm, White	Colorless	T-1 3/4	5 mm	3.2 V	5 mm	Clear	20 mA	Radial	8090 mcd
Cree LED C513A-MSN-CX0Z0231	Round with Domed Top	9.1 mm	Through Hole	2800 K	Standard	55 °	Warm, White	Colorless	T-1 3/4	5 mm	3.2 V	5 mm	Clear	20 mA	Radial	8090 mcd
Cree LED C513A-WSN-CX0Z0231	Round with Domed Top	9.1 mm	Through Hole		Standard	55 °	Cool, White	Colorless			3.2 V		Clear	20 mA	Radial	8090 mcd	9000 K	5 mm Dia	5 mm
Cree LED C513A-WSS-CY0Z0231	Round with Domed Top	12.2 mm	Through Hole		Standard	55 °	Cool, White				3.2 V			20 mA	Radial	8930 mcd	9000 K	5 mm Dia	5 mm
Cree LED C513A-WSS-CW0Z0231	Round with Domed Top	12.2 mm	Through Hole		Standard	55 °	Cool, White	Colorless			3.2 V		Clear	20 mA	Radial	7500 mcd	9000 K	5 mm Dia	5 mm
Cree LED C513A-MSS-CV0Y0511	Round with Domed Top	12.2 mm	Through Hole	2800 K	Standard	55 °	Warm, White	Colorless			3.2 V		Clear	20 mA	Radial	5165 mcd		5 mm Dia	5 mm
Cree LED C513A-WSN-CY0Z0231	Round with Domed Top	9.1 mm	Through Hole		Standard	55 °	Cool, White				3.2 V			20 mA	Radial	8930 mcd	9000 K	5 mm Dia	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

C513A Series

White, Cool 9000K LED Indication - Discrete 3.2V Radial
