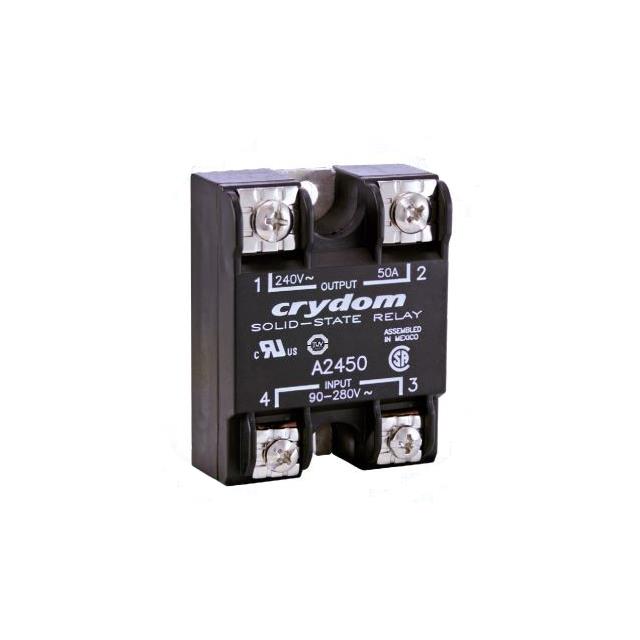

A2450G

Active

Sensata-Crydom

SSR RELAY SPST-NO 50A 24-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 50A 24-280V

Technical Specifications

Parameters and characteristics for this part

Part	Load Current	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Output Type	Termination Style
Sensata-Crydom A2450E-10	50 A	18 VAC/DC	36 VAC	Chassis Mount	-40 °C	80 C	CE CSA TUV UL	24 V	280 V	Hockey Puck	AC	Screw Terminal
Sensata-Crydom A2450G	50 A	90 VAC	280 VAC/DC	Chassis Mount	-40 °C	80 C	CE CSA TUV UL	24 V	280 V	Hockey Puck	AC Zero Cross	Screw Terminal
Sensata-Crydom A2450E	50 A	18 VAC/DC	36 VAC	Chassis Mount	-40 °C	80 C	CE CSA TUV UL	24 V	280 V	Hockey Puck	AC Zero Cross	Screw Terminal
Sensata-Crydom A2450K	50 A	90 VAC	280 VAC/DC	Chassis Mount	-40 °C	80 C	CE CSA TUV UL	24 V	280 V	Hockey Puck	AC Zero Cross	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 67.08

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
