FMCN1874
ActiveFairview Microwave
CONN PLUG CLAMP/SOLDER TNC
FMCN1874
ActiveFairview Microwave
CONN PLUG CLAMP/SOLDER TNC
Description
General part information
FMCN1874

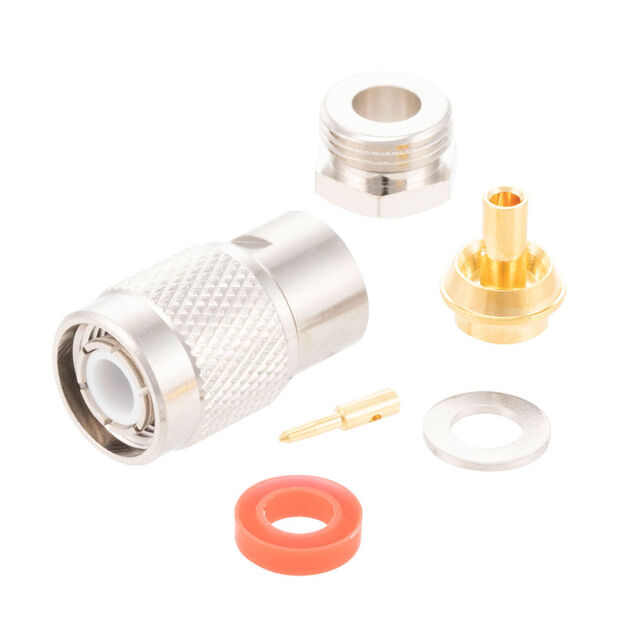

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1874 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-405 |
| Cable Group Diameter (Semi Rigid) | 0.086 in |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
