Crystals, Oscillators, Resonators

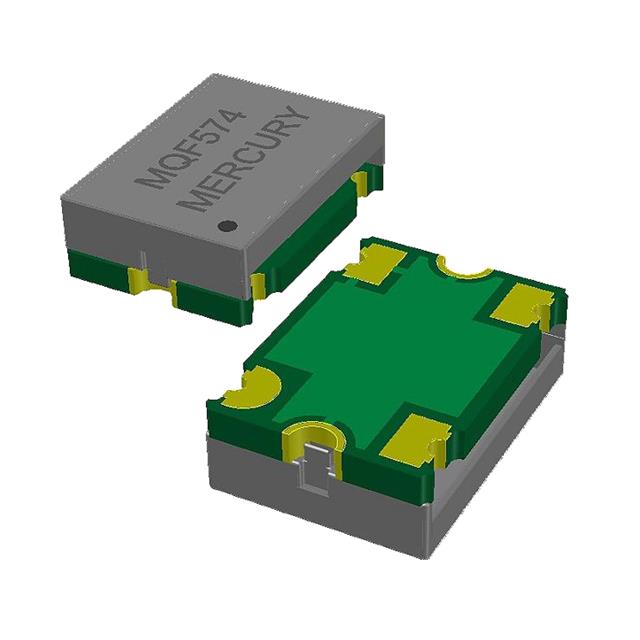

MQF574T33-250.000-1.0/-40+85
ActiveMercury Electronics Ind. Co. Ltd
XTAL OSC TCXO 250.0000MHZ CMOS
Crystals, Oscillators, Resonators
MQF574T33-250.000-1.0/-40+85
ActiveMercury Electronics Ind. Co. Ltd
XTAL OSC TCXO 250.0000MHZ CMOS
Technical Specifications
Parameters and characteristics for this part
| Specification | MQF574T33-250.000-1.0/-40+85 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 18 mA |
| Current - Supply (Max) | 40 mA |
| Frequency | 250 MHz |
| Frequency Stability | 1 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.098 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
CAD
3D models and CAD resources for this part
Description
General part information
MQF574T33-250.000-1.0/-40+85
250 MHz TCXO CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
