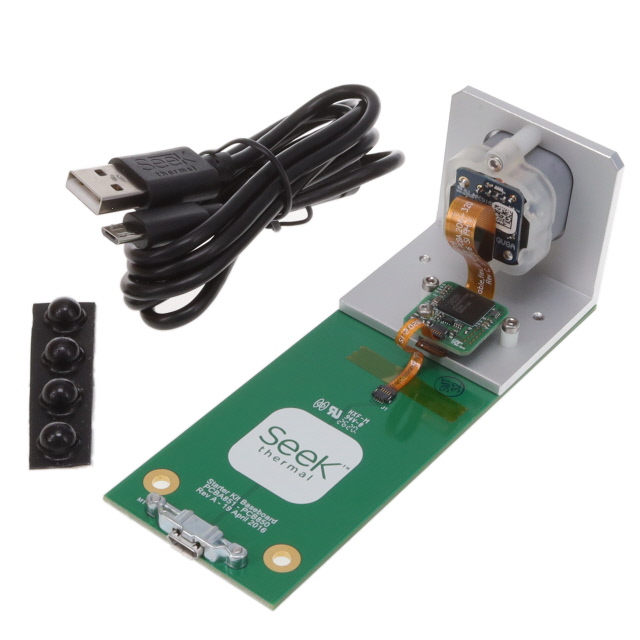

S319SPX
ObsoleteSeek Thermal
THERMAL IMAGING KIT 320X240, 24D
S319SPX
ObsoleteSeek Thermal
THERMAL IMAGING KIT 320X240, 24D
Description
General part information
S319SPX
Thermal Image Sensor 320H x 240V 12µm x 12µm Module
Technical Specifications
Parameters and characteristics for this part
| Specification | S319SPX |
|---|---|
| Active Pixel Array Horizontal | 320 pixels |
| Active Pixel Array Vertical | 240 pixels |
| Frames per Second | 27 fps |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | Module |
| Package Name | Module |
| Pixel Size (Length) | 12 µm |
| Pixel Size (Width) | 12 µm |
| Type | Thermal |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 3.3 V |
