EN3C5MX

Active

Switchcraft Inc.

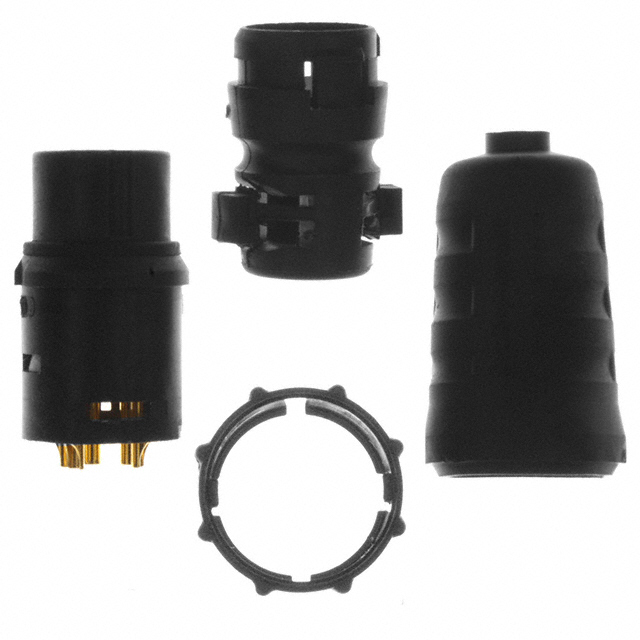

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3C5MX

Active

Switchcraft Inc.

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.30
		10	$ 6.57
		25	$ 6.19
		50	$ 6.03
		100	$ 5.87
		300	$ 5.59
		500	$ 6.17
		1000	$ 5.88

Description

General part information

EN3C5M Series

5 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C5MX	EN3C5M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	5.84 mm
Cable Opening	-	0.38 in
Cable Opening	-	9.65 mm
Cable Opening	-	0.23 in
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3C5M Series

CONN PLUG MALE 5POS GOLD CRIMP

Part	Features	Cable Opening [diameter]	Cable Opening [diameter]	Termination	Backshell Material, Plating	Insert Material	Mounting Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color	Orientation	Primary Material	Fastening Type	Shielding	Contact Material	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Material Flammability Rating	Applications	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Switchcraft Inc. EN3C5MCX	Backshell, Cable Clamp, Coupling Nut	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Crimp	Thermoplastic	Elastomer	Free Hanging (In-Line)	IP66/IP68	65 °C	-40 °C	Black	Keyed	Plastic	Bayonet Lock	Unshielded	Copper Alloy	Male Pins, Plug	Gold	7.5 A	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	250 VAC
Switchcraft Inc. EN3C5MX	Backshell, Cable Clamp, Coupling Nut	4.06 mm, 6.73 mm	0.16 in, 0.265 in		Thermoplastic	Elastomer	Free Hanging (In-Line)	IP66/IP68	65 °C	-40 °C	Black	Keyed	Plastic	Bayonet Lock	Unshielded	Copper Alloy	Male Pins, Plug	Gold	7.5 A	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	250 VAC
Switchcraft Inc. EN3C5MKX	Backshell, Cable Clamp, Coupling Nut	4.06 mm, 6.73 mm	0.16 in, 0.265 in		Thermoplastic	Elastomer	Free Hanging (In-Line)	IP66/IP68	65 °C	-40 °C	Black	Keyed	Plastic	Bayonet Lock	Unshielded	Copper Alloy	Male Pins, Plug	Gold	7.5 A	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	250 VAC
Switchcraft Inc. EN3C5MCLX	Backshell, Cable Clamp, Coupling Nut			Crimp	Thermoplastic	Elastomer	Free Hanging (In-Line)	IP66/IP68	65 °C	-40 °C	Black	Keyed	Plastic	Bayonet Lock	Unshielded	Copper Alloy	Male Pins, Plug	Gold	7.5 A	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	250 VAC	5.84 mm	0.38 in	9.65 mm	0.23 in
