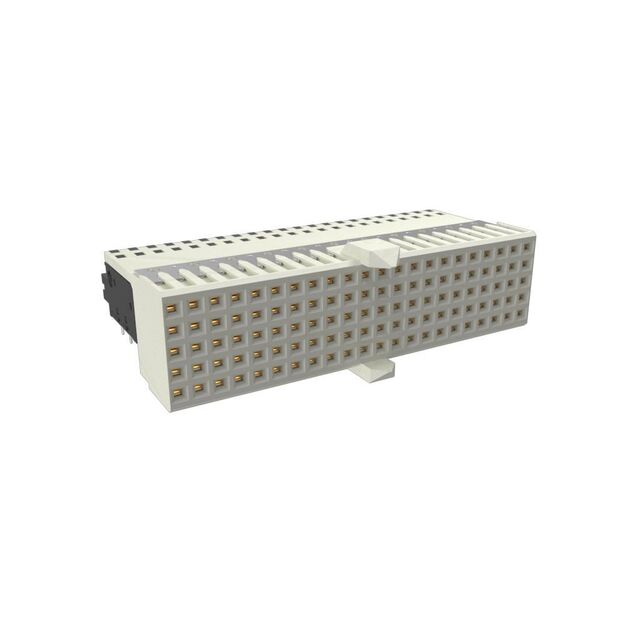

10155108-101LF

Obsolete

Amphenol ICC (FCI)

MILLIPACS HIGH SPEED RA RECEPT

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

MILLIPACS HIGH SPEED RA RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	10155108-101LF

Connector Style	AB 22
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	110 positions
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Pitch [x]	Pitch [x]	Termination	Current Rating (Amps)	Number of Positions	Number of Positions Loaded	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Connector Type	Number of Rows	Connector Style
Amphenol ICC (FCI) 10155108-101LF	0.079 in	2 mm	Press-Fit	1.5 A	110 positions	All	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	Receptacle Female Sockets	5	AB 22

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
