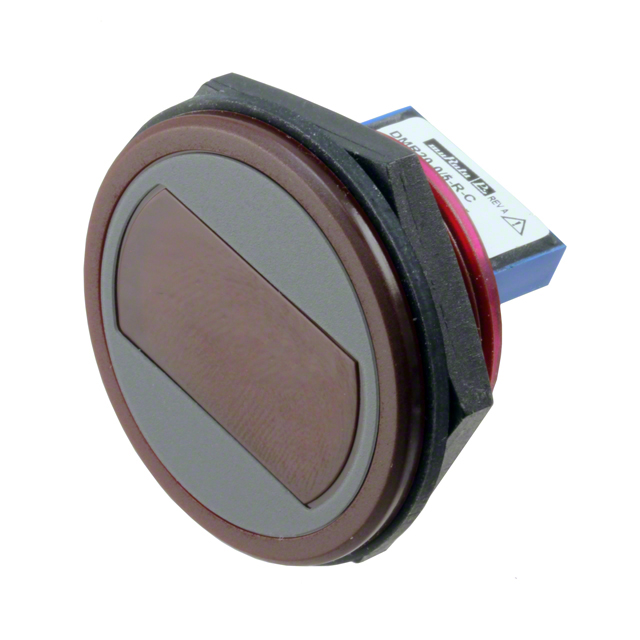

DMR20-0/5-R-C
ActiveMurata Power Solutions Inc.
PROCESS METER 0-5VDC LED PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMR20-0/5-R-C
ActiveMurata Power Solutions Inc.
PROCESS METER 0-5VDC LED PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DMR20-0/5-R-C |
|---|---|
| Display Characters - Height [z] | 0.299 in |
| Display Characters - Height [z] | 7.6 mm |
| Display Type | LED - Red Characters |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Measuring Range [Max] | 5 VDC |
| Measuring Range [Min] | 0 V |
| Measuring Type | Process |
| Number of Characters Per Row | 3.5 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [diameter] | 30.73 mm |
| Termination Style | Screw Terminal |
| Type | Process Meter |
| Voltage - Supply [Max] | 40 VDC |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 73.92 | |
| 5 | $ 66.99 | |||
| 10 | $ 61.79 | |||
| 25 | $ 57.17 | |||
| 50 | $ 54.86 | |||
| 100 | $ 54.60 | |||
DMR20-0 Series
PROCESS METER 0-5VDC LED PNL MT
| Part | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Measuring Type | Panel Cutout Dimensions [diameter] | Termination Style | Measuring Range [Max] | Measuring Range [Min] | Type | Display Characters - Height [z] | Display Characters - Height [z] | Number of Characters Per Row | Voltage - Supply [Max] | Voltage - Supply [Min] | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMR20-0/5-R-C | IP67 - Dust Tight, Waterproof | 60 °C | 0 °C | Process | 30.73 mm | Screw Terminal | 5 VDC | 0 V | Process Meter | 0.299 in | 7.6 mm | 3.5 | 40 VDC | 5 V | LED - Red Characters |
Description
General part information
DMR20-0 Series
Process Meter LED - Red Characters Display Panel Mount
