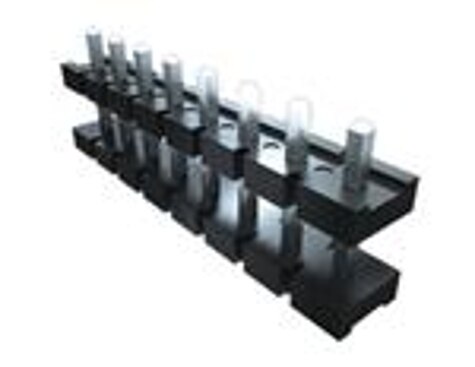

HPW-08-04-T-S-505-330-VS
ActiveSamtec Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS .200" POWER BOARD STACKER
HPW-08-04-T-S-505-330-VS
ActiveSamtec Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS .200" POWER BOARD STACKER
Description
General part information
HPW-08-04-T-S-505-330-VS
BOARD TO BOARD & MEZZANINE CONNECTORS .200" POWER BOARD STACKER
Technical Specifications
Parameters and characteristics for this part
| Specification | HPW-08-04-T-S-505-330-VS |
|---|---|
| Color | Natural |
| Contact Finish - Post (Mating) | Tin |
| Length - Post (Mating) | 0.33 in |
| Length - Stack Height | 0.505 in |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch | 5.08 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
