18UL1429STRBLA500
ActiveRemington Industries
#18 UL1429 150V WIRE BLA 500'
18UL1429STRBLA500
ActiveRemington Industries
#18 UL1429 150V WIRE BLA 500'
Description
General part information
18UL1429STRBLA500

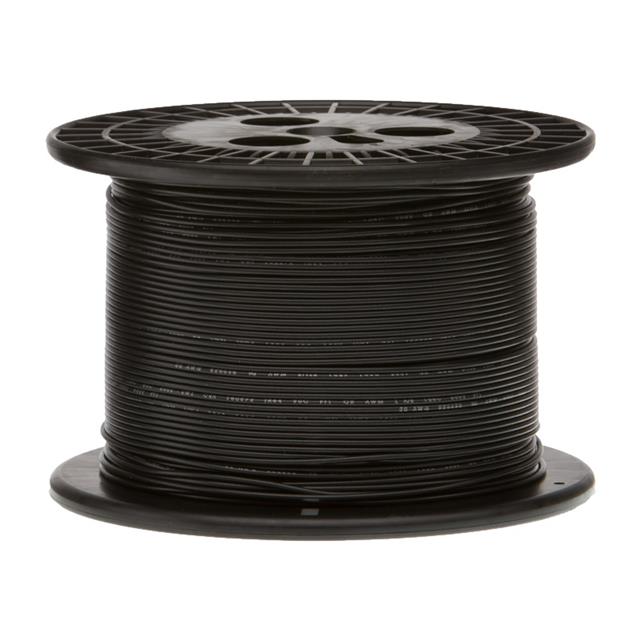

18 AWG Hook-Up Wire 19/30 Black 150V 500.0' (152.4m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 18UL1429STRBLA500 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 19 |
| Conductor Strand Gauge | 30 AWG |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.066 in |
| Jacket (Insulation) Material | Irradiated, Poly-Vinyl Chloride (XLPVC) |
| Jacket (Insulation) Thickness | 0.01 in |
| Jacket Color | Black |
| Length | 500 ft |
| Operating Temperature | 80 °C |
| Ratings | 1429, Style, UL |
| Voltage | 150 V |
| Wire Gauge | 18 AWG |
