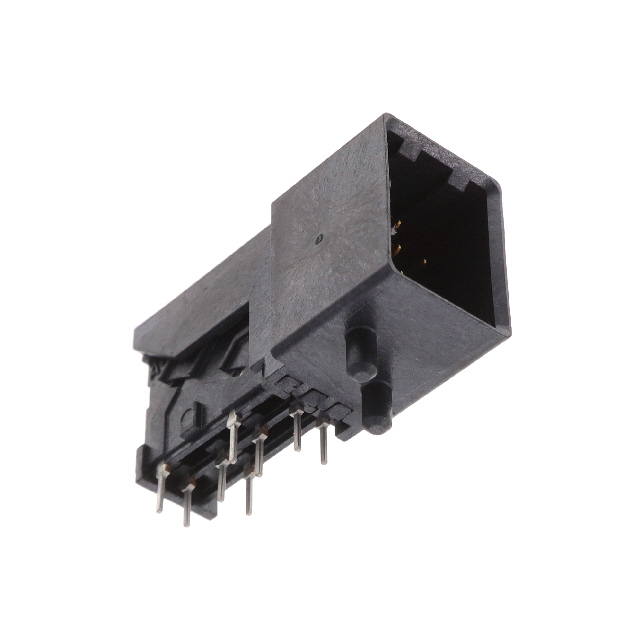

10133085-101LF
ActiveAmphenol ICC (FCI)
CONN HEADER 12POS PCB
Deep-Dive with AI
Search across all available documentation for this part.
10133085-101LF
ActiveAmphenol ICC (FCI)
CONN HEADER 12POS PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10133085-101LF |
|---|---|
| Color | Black |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold, Gold-Palladium |
| Features | Board Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Columns | 3 |
| Number of Positions | 12 |
| Number of Positions Loaded | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Solder Paste |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 13.95 | |
| 10 | $ 11.49 | |||
| 25 | $ 10.88 | |||
| 50 | $ 10.11 | |||
| Tape & Reel (TR) | 185 | $ 7.37 | ||
Description
General part information
10133085 Series
12 Connector Header, Male Pins Through Hole, Right Angle Black
