C201367A-102NHF
ActiveITG Electronics, Inc.
1.0MH, 8.0MOHM, 12.0A DIP CMC
C201367A-102NHF
ActiveITG Electronics, Inc.
1.0MH, 8.0MOHM, 12.0A DIP CMC
Description
General part information
C201367A-102NHF

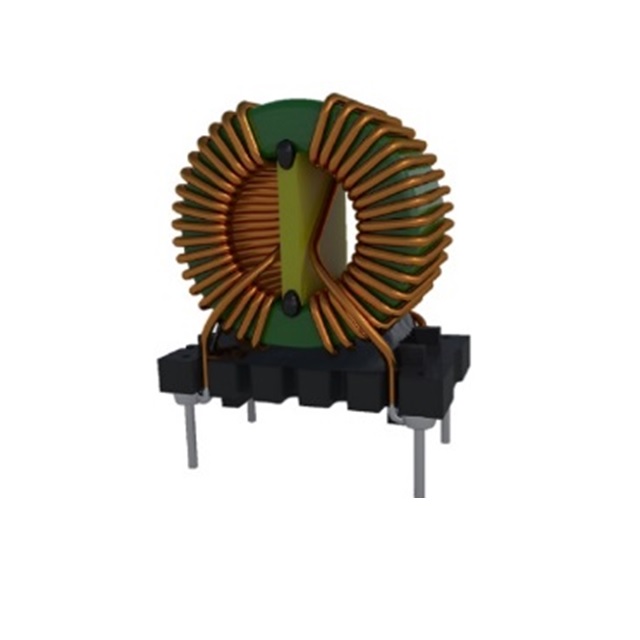

1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 12A DCR 8mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | C201367A-102NHF |
|---|---|
| Current Rating (Max) | 12 A |
| DC Resistance (DCR) (Max) | 8 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.181 in |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.24 in |
| Size / Dimension Width | 0.925 in |
| Voltage Rating - AC | 250 V |
