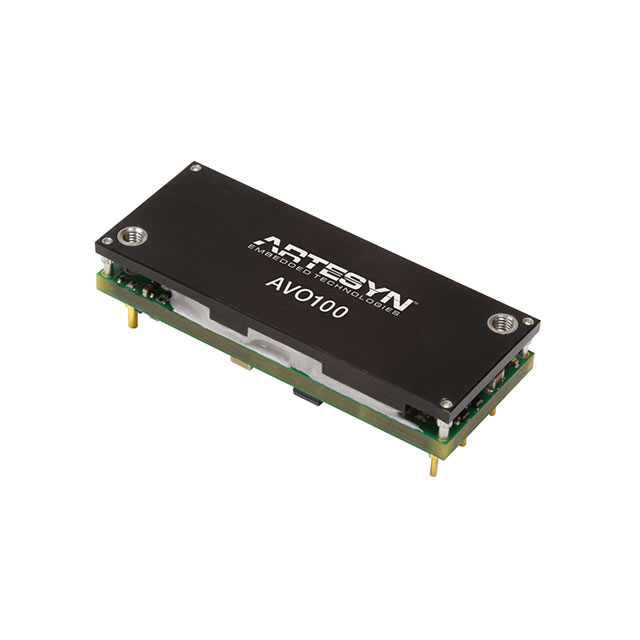

AVO100-48S28P-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 28V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AVO100-48S28P-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 28V 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVO100-48S28P-6L

Applications	ITE (Commercial)
Current - Output (Max) [Max]	3.57 A
Efficiency	92 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Power (Watts)	100 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	0.38 in
Size / Dimension [z]	9.6 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	28 V

AVO100 Series

Isolated DC/DC Converters - Chassis Mount 100W 5V@20A 8thBrick POS LOG/PIN 3.8mm

Part	Power (Watts)	Type	Features	Mounting Type	Applications	Voltage - Isolation	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]
ARTESYN / Advanced Energy AVO100-48S05SL	100 W	Isolated Module	OCP OTP OVP Remote On/Off UVLO	Surface Mount	ITE (Commercial)	2250 VDC	92.8 %	0.9 "	0.37 in	9.5 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	1/8 Brick 8-SMD Module	20 A	75 V	5 V	36 V
ARTESYN / Advanced Energy AVO100-48S1V2-6L	100 W	Isolated Module	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	2250 VDC	85.4 %	0.9 "	0.38 in	9.6 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	1/8 Brick 8-DIP Module	50 A	75 V	1.2 V	36 V
ARTESYN / Advanced Energy AVO100-48S05P-6L	100 W	Isolated Module	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	2250 VDC	92.8 %	0.9 "	0.37 in	9.5 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	1/8 Brick 8-DIP Module	20 A	75 V	5 V	36 V
ARTESYN / Advanced Energy AVO100-48S28P-6L	100 W	Isolated Module		Through Hole	ITE (Commercial)	1.5 kV	92 %	0.9 "	0.38 in	9.6 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	Eighth Brick	3.57 A	75 V	28 V	36 V
ARTESYN / Advanced Energy AVO100B-48S3V3-6L	99 W	Isolated Module	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	2000 V	92 %	0.9 "	0.35 "	8.9 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	1/8 Brick 8-DIP Module	30 A	75 V	3.3 V	36 V
ARTESYN / Advanced Energy AVO100C-48S3V3B-4L	100 W	Isolated Module	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	2000 V	92.4 %	0.9 "	0.5 in	12.7 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	1/8 Brick 8-DIP Module	30 A	75 V	3.3 V	36 V
ARTESYN / Advanced Energy AVO100-48S1V2B-6L	100 W	Isolated Module	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	2250 VDC	85.4 %	0.9 "	0.5 in	12.7 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	1/8 Brick 8-DIP Module	50 A	75 V	1.2 V	36 V
ARTESYN / Advanced Energy AVO100-48S05PB-6L	100 W	Isolated Module	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	2250 VDC	92.8 %	0.9 "	0.5 in	12.7 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	1/8 Brick 8-DIP Module	20 A	75 V	5 V	36 V
ARTESYN / Advanced Energy AVO100-48S28PB-6L	100 W	Isolated Module		Through Hole	ITE (Commercial)	1.5 kV	92 %	0.9 "	0.5 in	12.7 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	Eighth Brick	3.57 A	75 V	28 V	36 V
ARTESYN / Advanced Energy AVO100-48S28B-6L	100 W	Isolated Module	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	1.5 kV	92 %	0.9 "	0.5 in	12.7 mm	2.28 in	57.9 mm	22.9 mm	1	85 °C	-40 °C	1/8 Brick 8-DIP Module	3.57 A	75 V	28 V	36 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	128	$ 34.35

Description

General part information

AVO100 Series

Isolated DC/DC Converters - Chassis Mount 100W 5V@20A 8thBrick POS LOG/PIN 3.8mm

Documents

Technical documentation and resources
